Turnkey Poultry Farm Project Consultant

From the intelligent modern poultry farm, layout of poultry houses, chicken cage, poultry equipment to final bird rearing and poultry harvesting.

1. For starter, we free supply cage layout design or house design as your land.

2. For a modern recycle farm, according to your land size and shape, design easy management and high effective farm project, such as security room, working place, layer/chick/broiler rearing house, egg stock room and broiler processing and froze room, chicken food processing room, if you land is big and want recycle farm, there will be plant land, organic manure processing project, fish rearing line and so on.

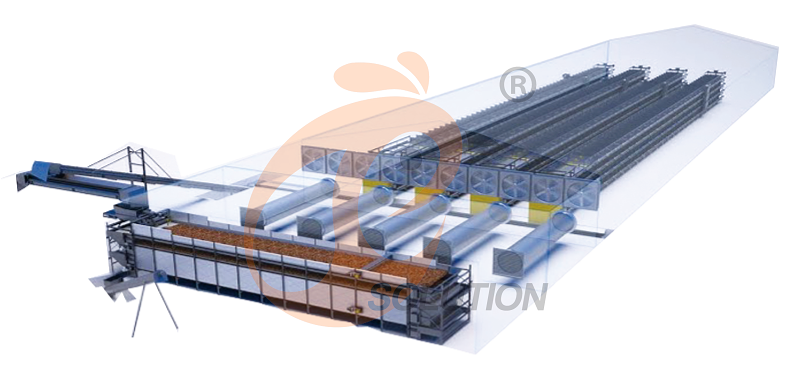

Intelligent Recyclable Poultry Farm

1. AI-powered recyclable poultry farm

2. AI-managed automatic chicken cage system

3. AI-managed poultry farm equipment

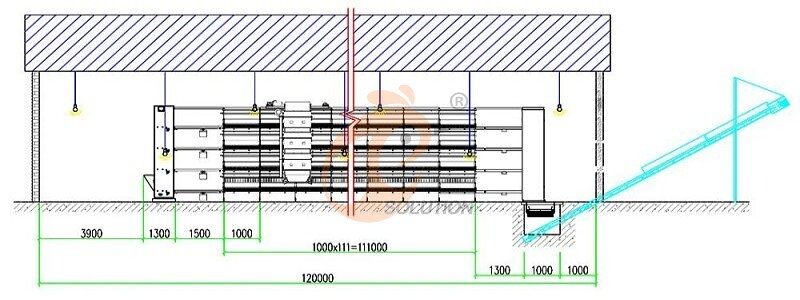

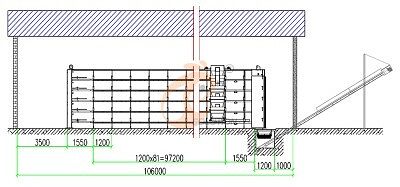

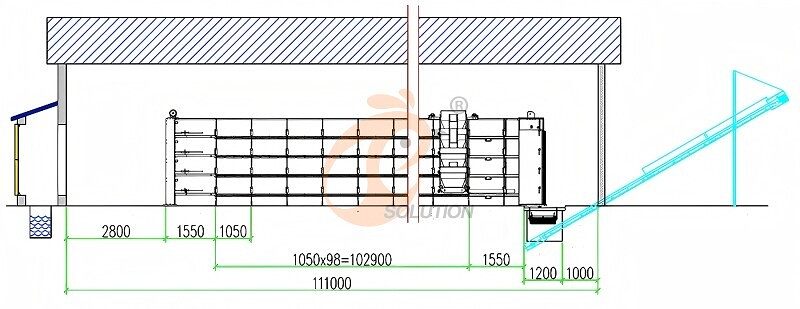

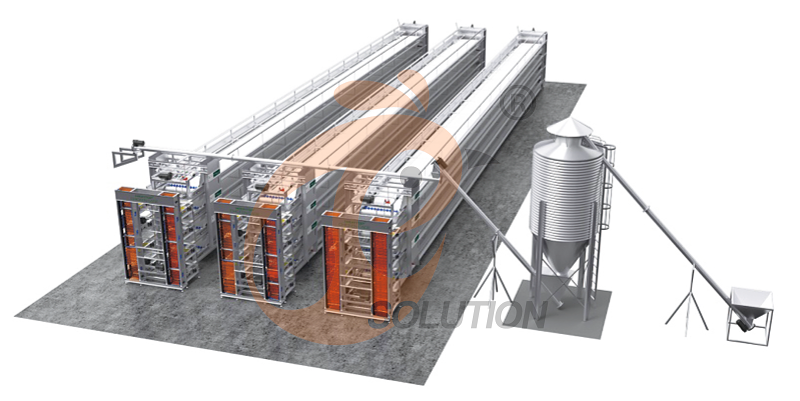

Layout Of Battery Cage And Equipment

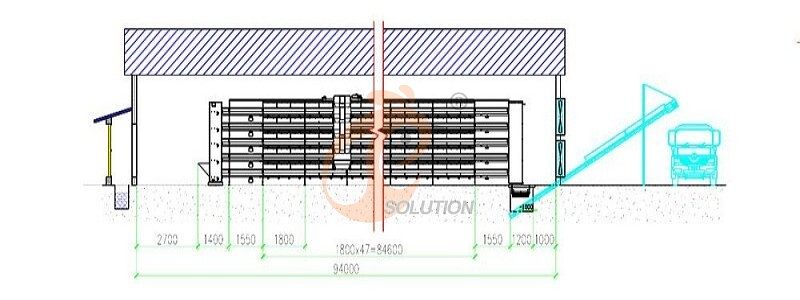

1. Layout of egg laying chicken battery cages

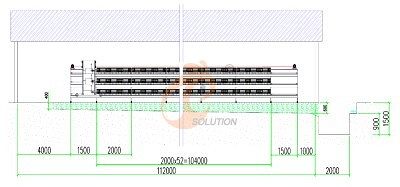

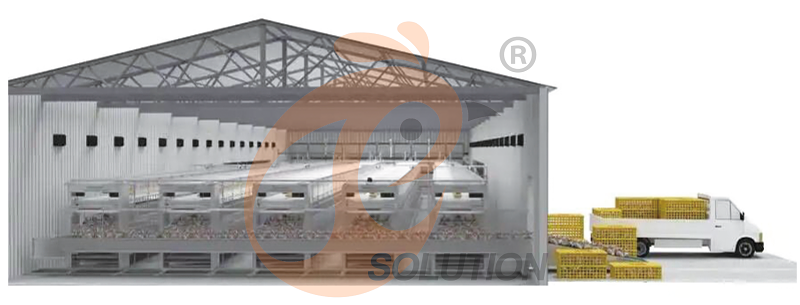

50,000 broilers/house

Contact us to learn more...

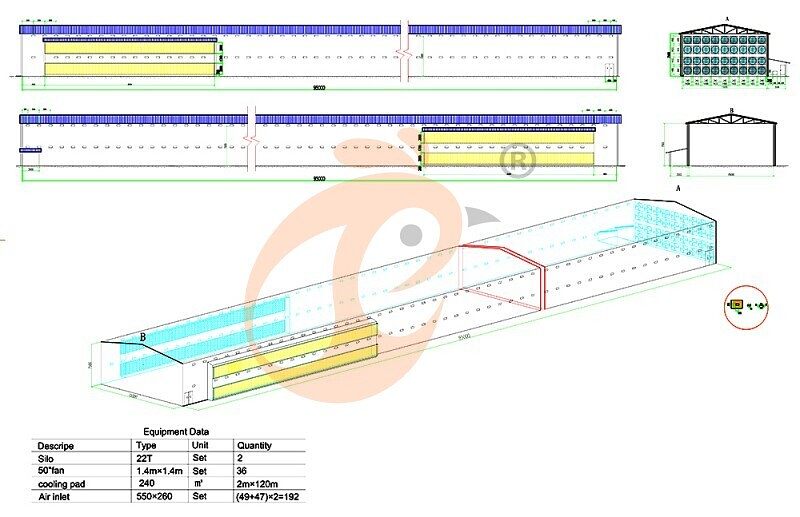

A Sample Of Nigerian Poultry House Design With Layer Battery Cage

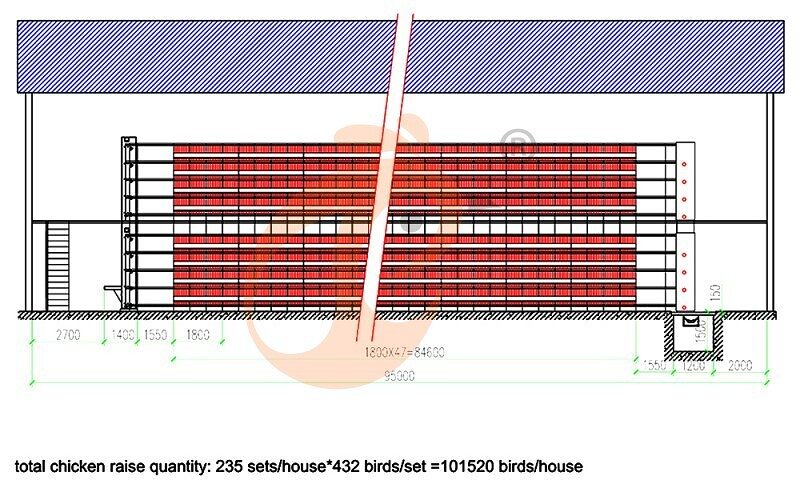

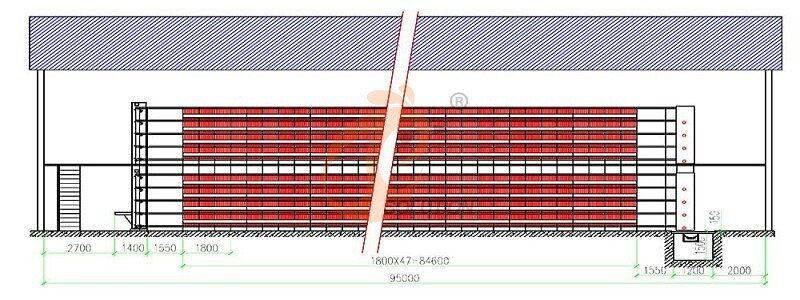

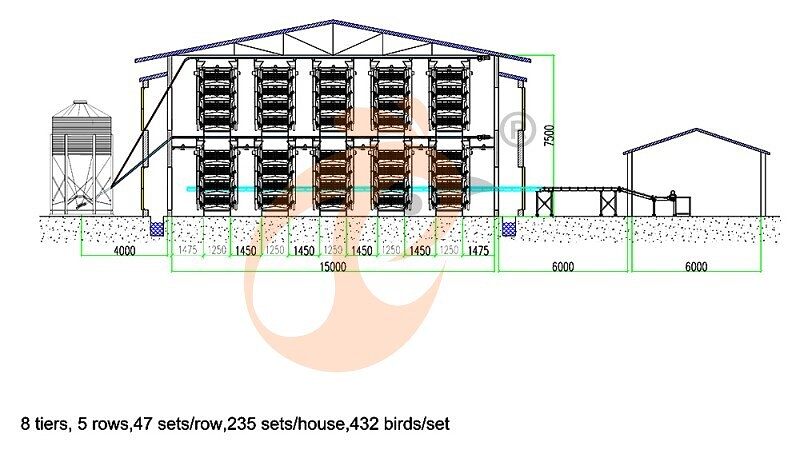

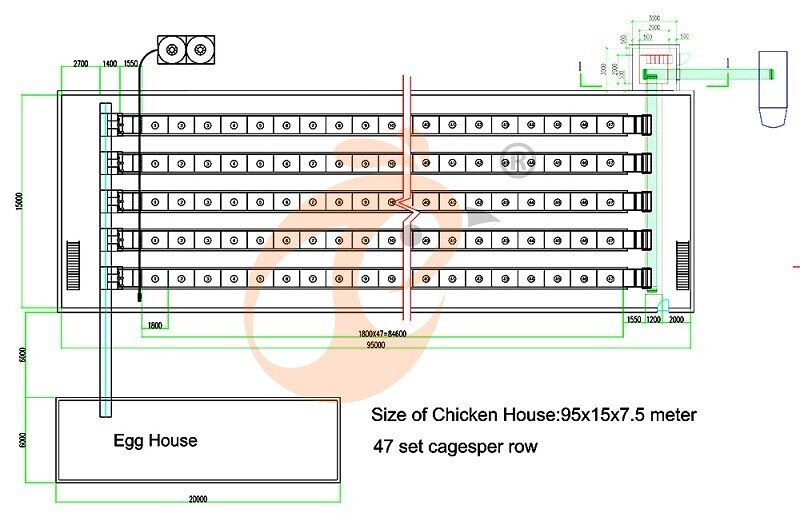

Layer house,101,520 layers/house, H8 automatic layer chicken cage's house drawing

1. Building dimension: 95* 15* 7.7 meters

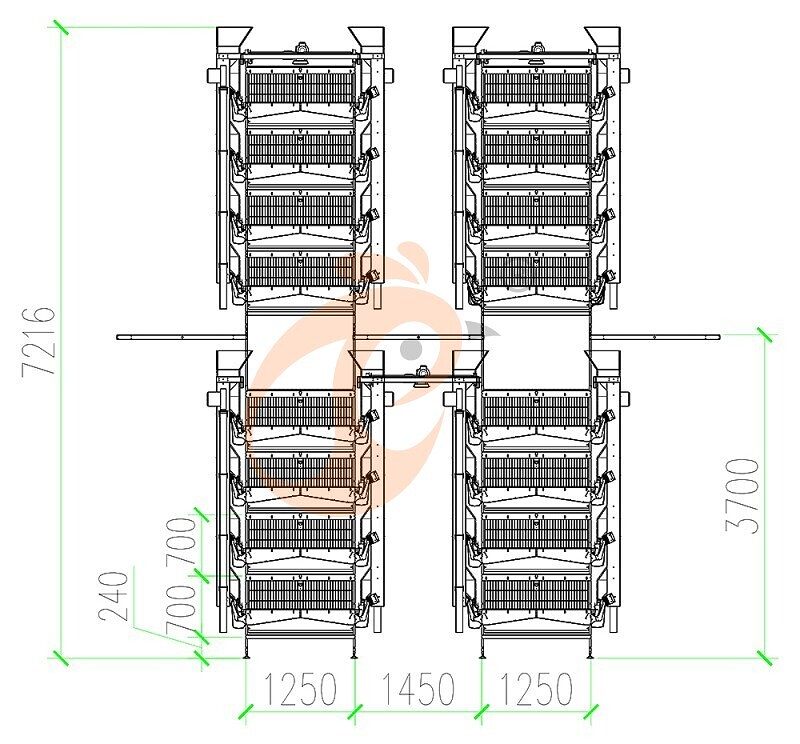

2. Number of cage tiers: 8 tiers (4+ 4)

3. Number of cage lines: 5 lines

4. Total section each line: 47 sections

5. Total section in one house: 235 sections

6. Cage dimension (section): 1800* 1250mm

7. Cells/ tier: 6

8. Cage dimension (cell): 600* 625mm

9. Birds/ cell: 9

10. Birds/ tier: 54

11. Birds/ section: 270

12. Sq.cm/ bird: 60* 62.5 cm/ 9 birds= 416.67 sq.cm

13. Total birds each house: 101,520 birds

14. Fittings

(1) Cage structure system

(2) Automatic feeding system

(3) Automatic drinking system

(4) Automatic egg collecting system

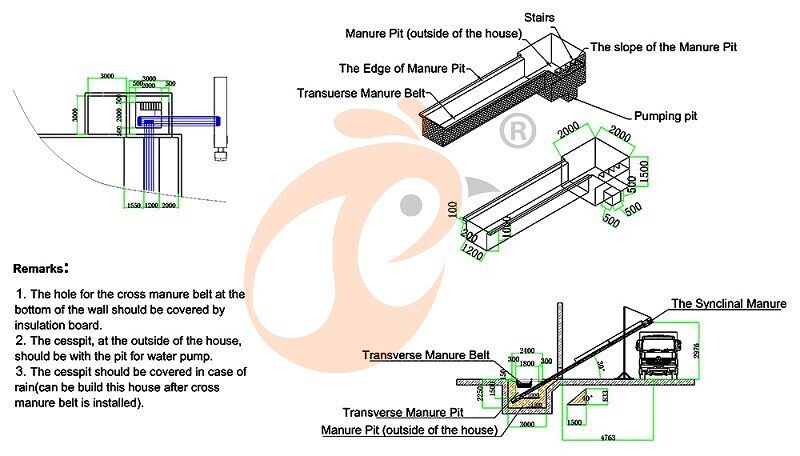

(5) Automatic manure removal system

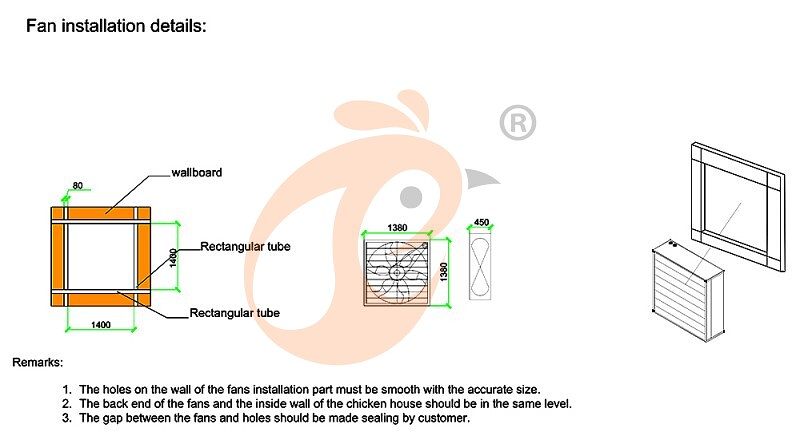

(6) Climate control system

(7) Lighting system

(8) Chicken house control system

(9) Installation tools
