YOU LOCATION:Home > Products > Chicken Cage
Broiler battery cage is for 100 - 10,000+ broilers a house, at 1 week - 50 days broilers for market. It is lifespan is 25+ years.

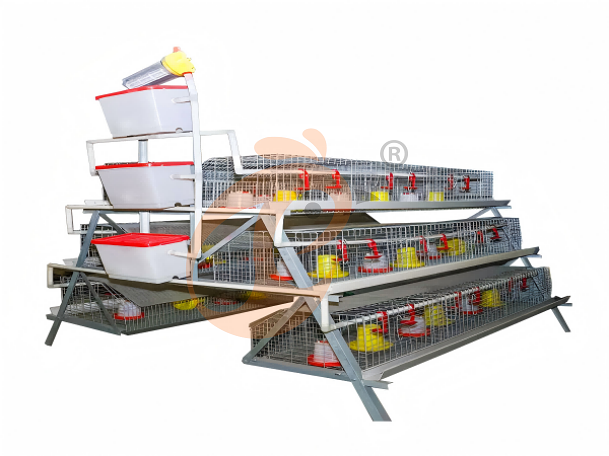

Broiler battery cage is with "A" frame, also named A type semi-automatic broiler battery cage.
The lifespan of battery cage made by VANKE are 5 years higher than market.
Learn introduction of "broiler battery cage is for 10,000 - 50,000+ broilers a house" and "broiler battery cage for 50,000 - 100,000+ broilers a house", please check PRODUCTS
Vanke's broiler battery cage is using in customer 's poultry farm.
Accessories Of Broiler Battery Cage
1. Cage mesh and frame
2. Automatic drinking system
3. Manual feeding system
4. Automatic manure cleaning system
5. Environmental control and auxiliary accessories (selective assembly)
6. Poultry house management (selective assembly)
Components And Working Principle Of Broiler Battery Cage
1. Cage mesh and frame

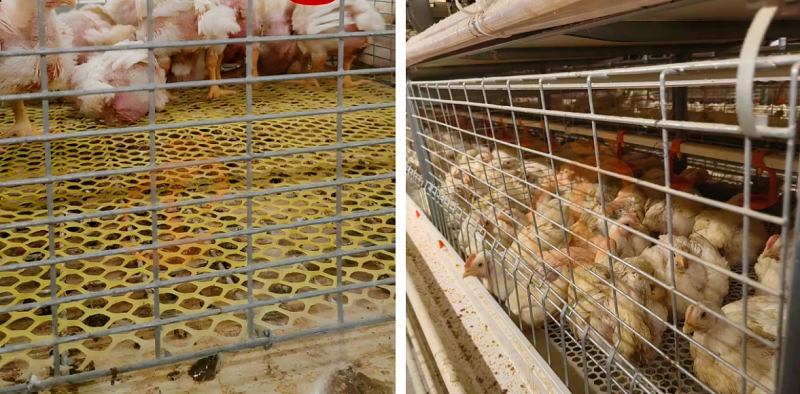

Stronger galvanized material, young broilers standing on plastic mesh
- Components: Bottom mesh Φ2.0–2.3mm, side/partition mesh Φ1.8–2.0mm, main frame Φ3.5–4.0mm, galvanized channel steel/angle steel columns, reinforcing rods, plastic floor mesh for broiler foot protection, installation connectors (bolts, clips, hooks, brackets).
- Working principle: A-type cage structure with 3–4 tiers, stable frame design, and plastic mesh protects broiler’ feet.
2. Automatic drinking system

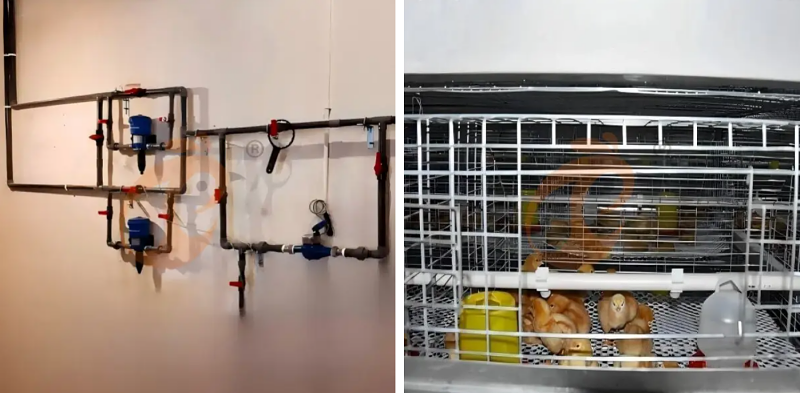

Water line and drinker
- Components: PVC water pipe, nipple drinkers, water regulator, water tank, doser, installation connectors.
- Working principle: The system provides stable water supply, broiler drink by pecking nipples, the drinking line height can be adjusted as broiler grow, and the doser allows automatic delivery of medicines or nutrients.
3. Manual feeding system

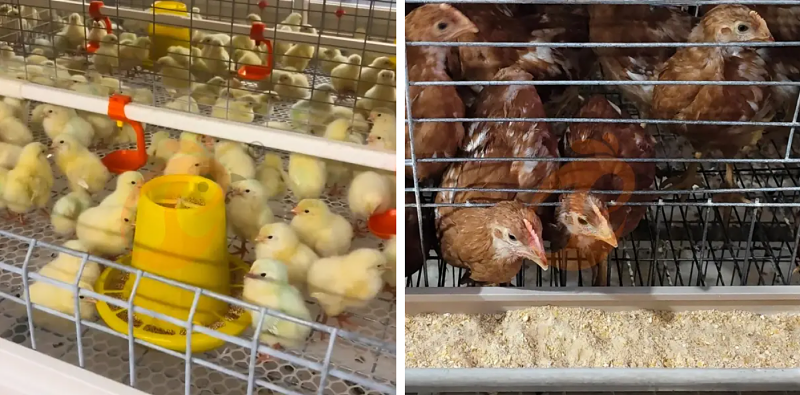

Small feeder for young broiler eating, bigger one uses feeding trough
- Components: Feed troughs, anti-waste baffles (optional), installation connectors.
- Working principle: Feed is manually distributed into the troughs, simple and reliable, with lower investment costs.
4. Automatic manure cleaning system
- Components: Longitudinal manure belt, cross transmission system, motor with chain drive, manure cart, scraper board, installation connectors.
- Working principle:

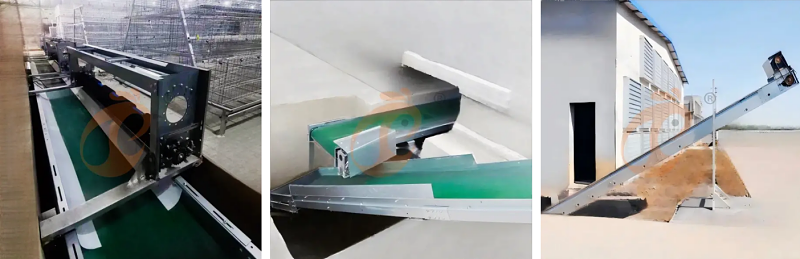

Type 1 belt cleaning to outside
(1) Belt type: Manure falls onto the manure belt, which is driven by motor to carry it outside at set intervals.

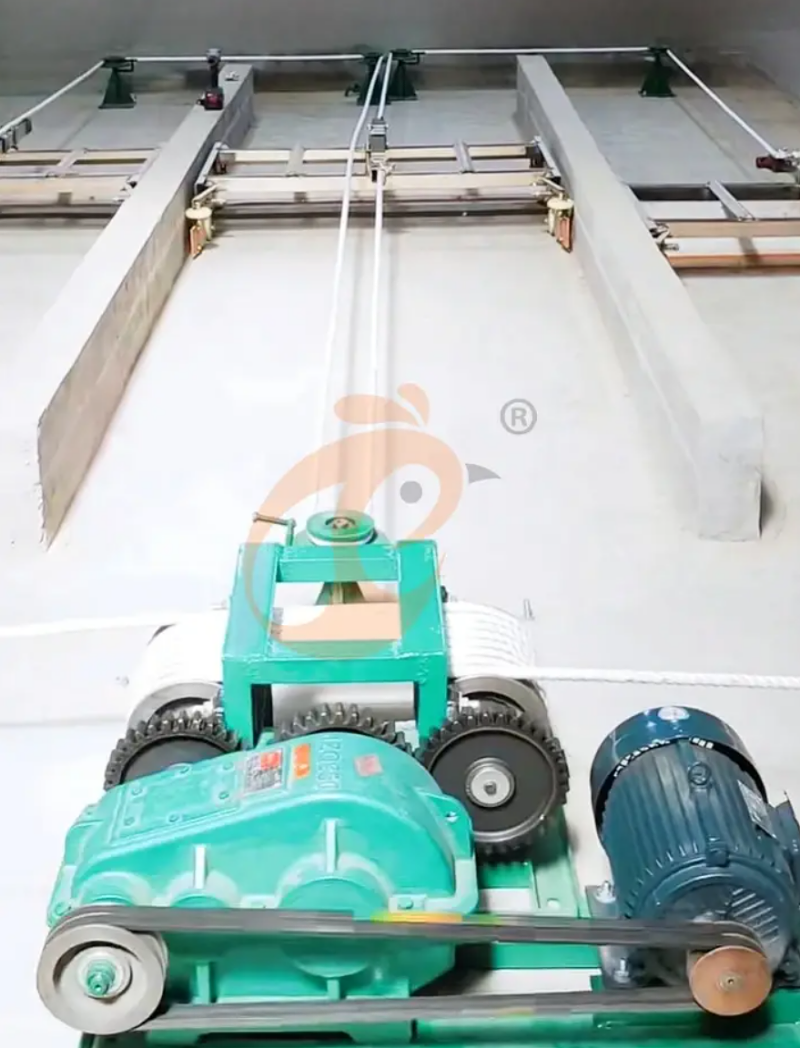

Type 2 scraper cleaning to outside
(2) Scraper type: Manure drops into the gutter, where a scraper chain moves back and forth to collect and remove it.
Customers can choose either method according to their farm size and budget.
5. Environmental control and auxiliary accessories (optional)
Pads, fans and fresh windows
Warm pipe and warm machine
- Components: Fans, cooling pads, LED lights, simple curtains, warmer, temperature and humidity sensors, anti-escape bars, anti-rat nets, installation connectors.
- Working principle: Provides basic ventilation, lighting, and temperature adjustment, ensuring a suitable growth environment for broilers.
6. Poultry house management (selective assembly)
Farm management APP
Control device and sensors
- Components: Farm CCTV, AI data analysis report, control device, NH3 sensor, other sensors and so on.
- Working principle: One-stop management and control, from CCTV to giving order to every house, from date collection to AI data analysis report of feed, growing and so on, abnormal condition detection and alarm system.
Specific configurations are subject to customer requirements or final quotation.
If you are interested in other equipment of AI smart management, layers, broilers, pullets, feed, eggs, manure and so on, please directly click PRODUCTS
Specification of A type semi-automatic broiler battery cage

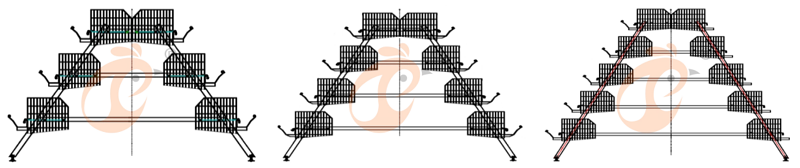

Cage cell
3 Tiers, 4 Tiers, 5 Tiers
| Type | Tier/Set | Size(L x W x H)/Unit(Mm) | Cell Size(L x W x H) | Cells/Unit Per Set | Birds/Cells | Birds/Set | Space/Bird(m2) |
| A1 | 3 | 1.5 x 2.2 x 1.75 | 70 x 70 x 40 | 12 | 8 | 64 | 0.061 |
| A2 | 4 | 1.5 x 2.2 x 2.3 | 70 x 70 x 40 | 16 | 8 | 85 | 0.061 |
| A3 | 5 | 1.5 x 2.2 x 2.9 | 70 x 70 x 40 | 20 | 8 | 107 | 0.061 |
Capacity of different poultry house size

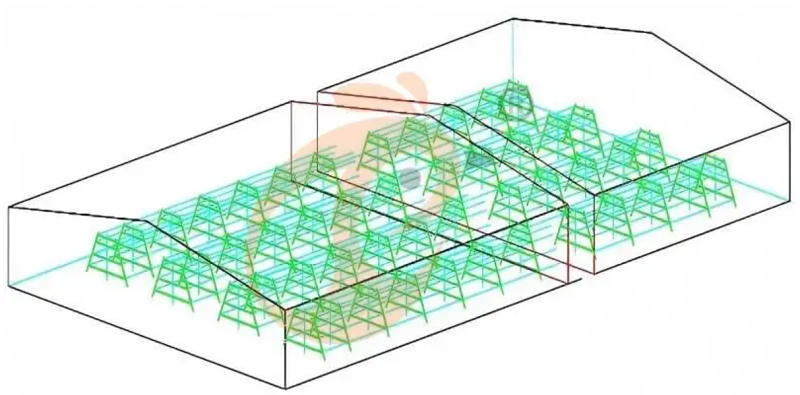

Layout of battery cage system in poultry house
| Component | Regular Data | ||
| Cage Model | 3 tiers | 4 tiers | 5 tiers |
| House Size:50 x 11 x 5.9 (L x W x H) | 5,760 birds | 7,650 birds | 9,630 birds |
| House Size: 100 x 11 x 5.9 (L x W x H) | 12,288 birds | 16,320 birds | 20,544 birds |
| Standard Cage Dimension (L x W x H) | 1.5 x 2.2 x 1.75m | 1.5 x 2.2 x 2.3m | 1.5 x 2.2 x 2.9m |
| Birds Per Set | 64 birds | 85 birds | 107 |
Place the broiler cages on the first and second layers, and leave the third layer empty. When the broilers grow to a certain age, place them evenly on each layer.
For reference only, the exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.
1. Since its establishment in 2011, we have rich experience in localization services.
Nigerian local team
2. Constant communication with the United States and Europe, make high-quality battery cage and equipment.
Engineer inspection
3. Lagos local production, save customers 10% to 30% of costs.
Nigerian Factory, workshop and materials
4. Constantly innovate technologies, tailor intelligent project solutions for you.
Intelligent solution
5. Constantly expanding the team, the headquarters in Hong Kong and branches in Nigeria, Tanzania and Ethiopia are joint management.
Branches of China, Nigeria, Tanzania and Ethiopia
Vanke Machinery & Equipment Nig Ltd have serviced farmers and distributors since 2010.
Gain the high trust and recognition from customers to now.
Following farmers are some of our clients, welcome you!
Contact: Whatsapp 24 hours online +234 8111199996.
ADD: after Sinoma Office, 200 meters near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria.
1. All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.
2. Local factory and warehouse from branches of Ethiopia, Tanzania and Nigeria, depends on your order.
3. Full or less container from China branch by sea, depends on your order.
Nigerian factory, warehouse and delivery
Container shipping from China to Nigeria
Engineer installation
4. Replace the nipple drinkers if they link water to protect brid feather, medicinal water will make feather fall off.
...
