YOU LOCATION:Home > Products > Chicken Cage
Layer battery cage is for 50,000 - 100,000+ layers a house, at 12+ weeks old egg laying chicken starting laying. It is lifespan is 25+ years.
Layer battery cage is with "H" frame, also named H type automatic layer battery cage.
The lifespan of battery cage made by VANKE are 5 years higher than market.
Learn introduction of "layer battery cage is for 100 - 10,000+ layers a house" and "layer battery cage for 10,000 - 50,000+ layers a house", please check PRODUCTS
All pictures are from Vanke's customers' poultry farm.

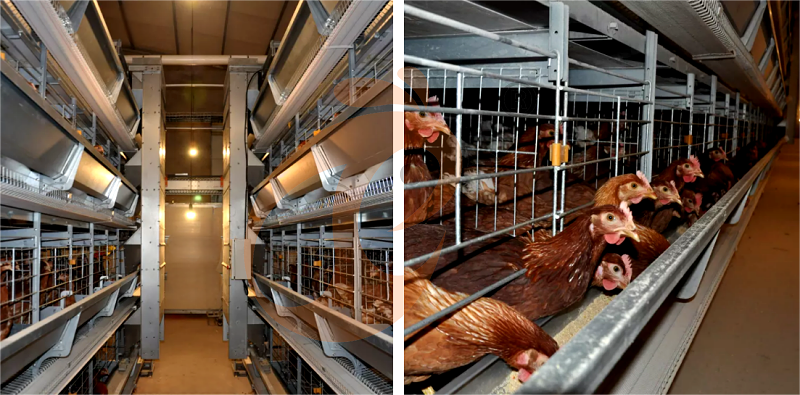

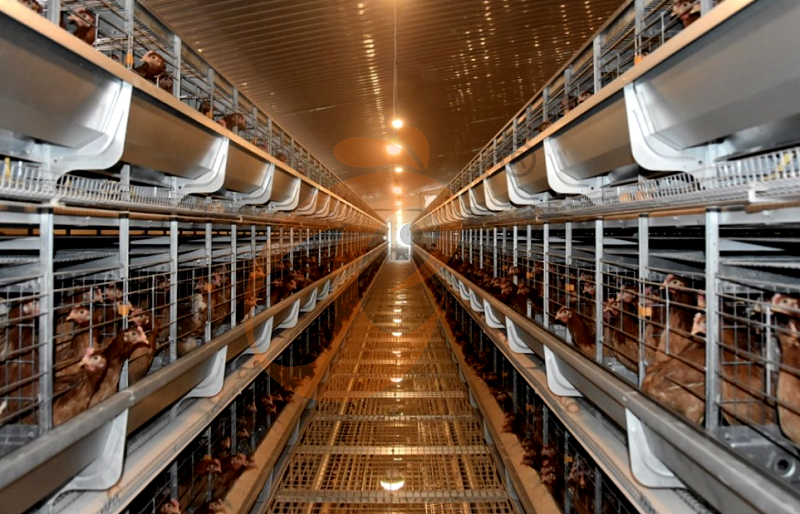

8 tiers of automatic egg layer battery cage
4 tiers of automatic egg layer battery cage
3 tiers of automatic egg layer battery cage
Accessories Of Layer Battery Cage
1. Cage mesh and frame
2. Automatic drinking system
3. Automatic feeding system
4. Automatic egg collecting system
5. Automatic manure cleaning system
6. Environmental control and auxiliary accessories (selective assembly)
7. Poultry house management (selective assembly)
Components And Working Principle Of Layer Battery Cage
1. Cage mesh and frame
Heavy galvanized material
- Components: Bottom mesh Φ2.3–2.7mm, vertical/separating mesh Φ2.0–2.5mm, main frame Φ4.0mm, galvanized channel steel/angle steel columns, reinforcing ribs, anti-corrosion coating, installation connectors (bolts, clips, hooks, brackets).
- Working principle: H-type structure is stable and space-saving, the bottom mesh is tilted 5°–7°, and eggs naturally roll into the egg trough.
2. Automatic drinking system

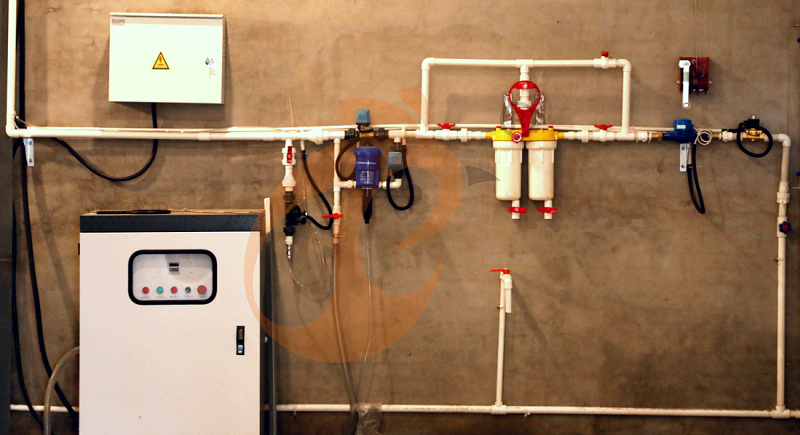

Water starting line

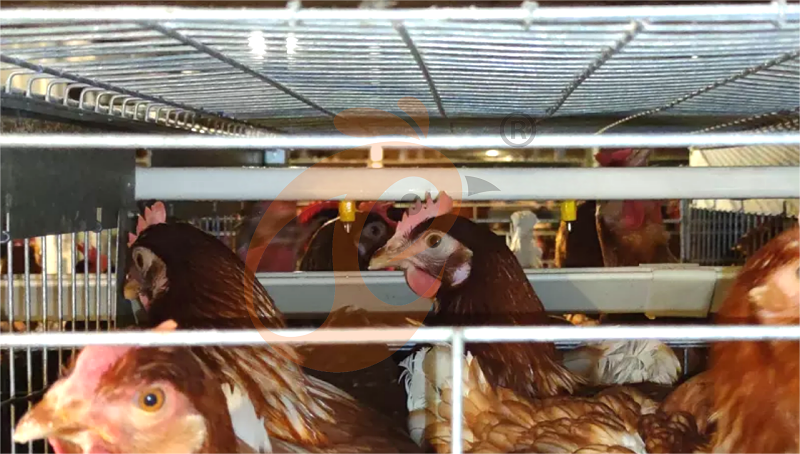

Drinking line
- Components: Pvc main and branch pipes, stainless steel nipple drinkers, anti-drip devices, water pressure regulator, end flushing valve, water tank or filter system, installation connectors.
- Working principle: The system supplies water automatically with stable pressure, and chickens drink by pecking easily.

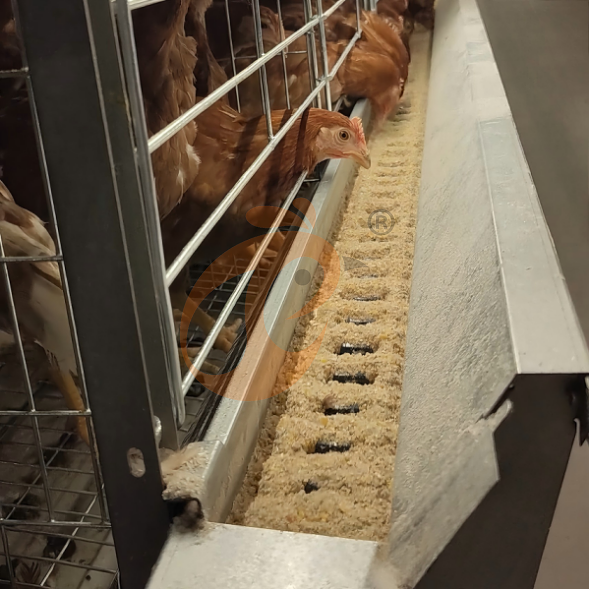

3. Automatic feeding system

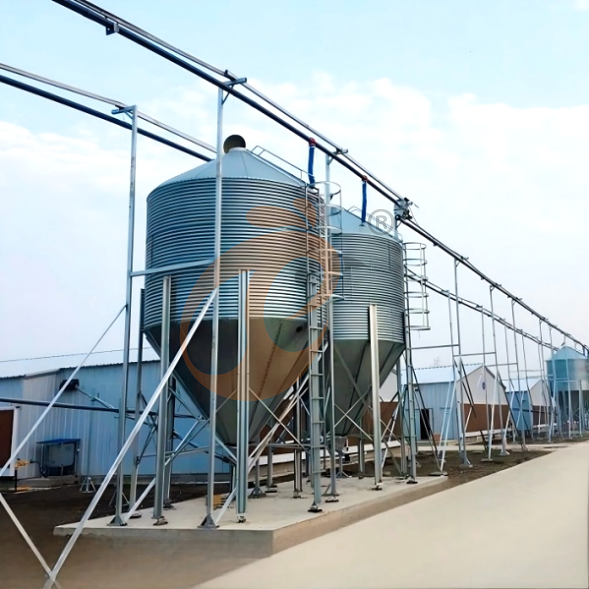

Feed storage silo
Type 1 hopper feeding system
Type 2 chain feeding system
- Components: Spiral or chain type feeder, transverse feed trough, hopper, driving motor, anti-waste baffle, automatic control panel, feed silo (with automatic discharging device), installation connectors.
- Working principle: Feed is stored in the silo, discharged into the feeder through the discharging device, and automatically delivered to the trough.

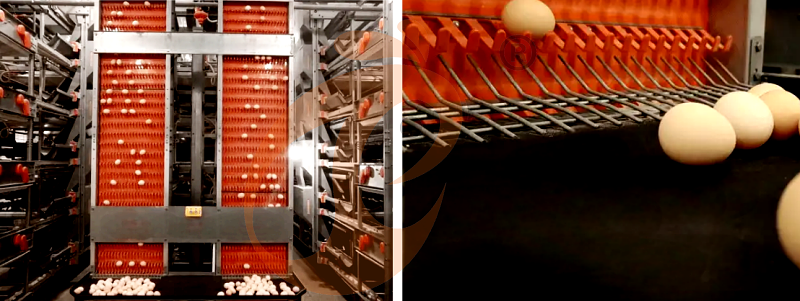

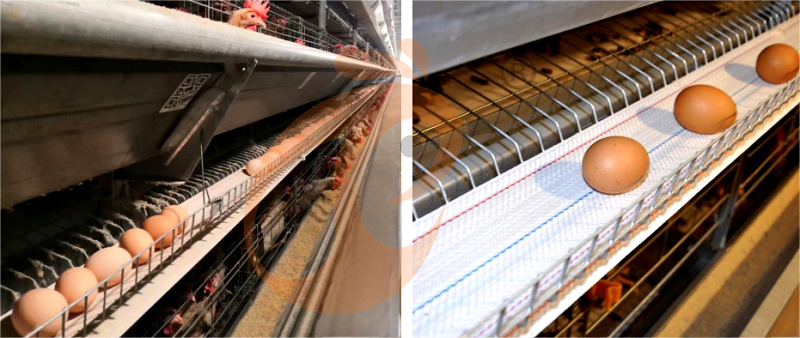

4. Automatic egg collecting system
Egg belt
Type 1 workers pick up eggs

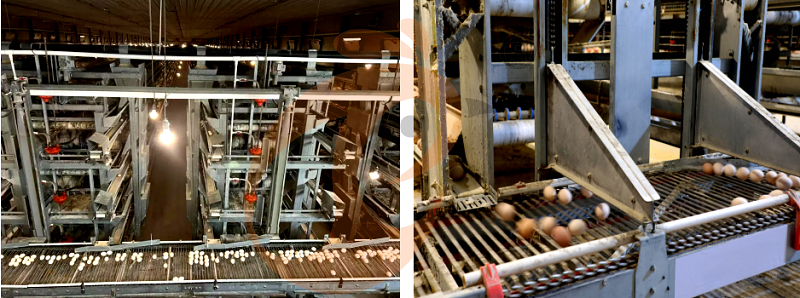

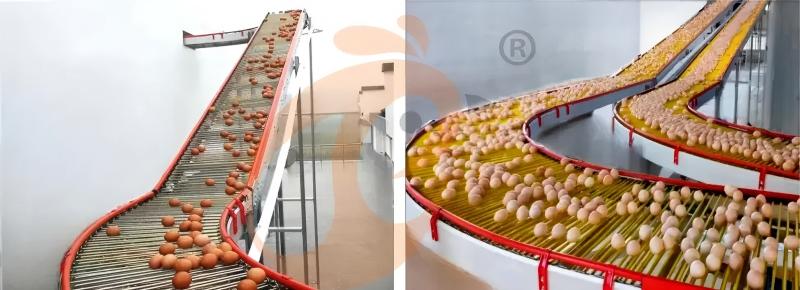

Type 2 end collection line
House collection line (links with type 2)
- Components: Egg conveyor belt, driving motor, buffering device, central conveyor line, egg storage trolley, installation connectors.
- Working principle: Eggs roll onto the conveyor belt by slope, automatically delivered to the collection point, with a buffer device to reduce breakage.

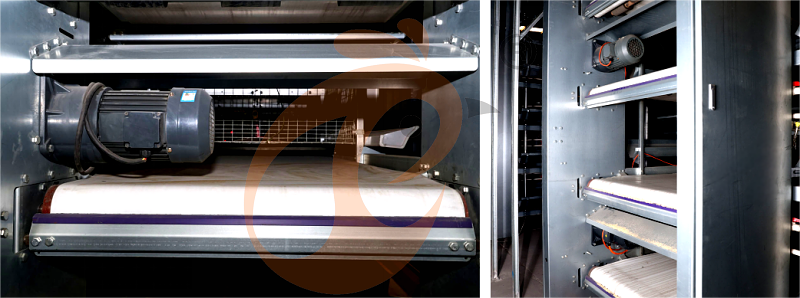

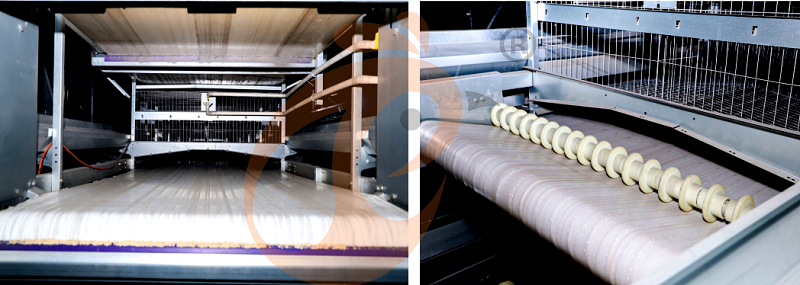

5. Automatic manure cleaning system
Manure belt device of bottom cage

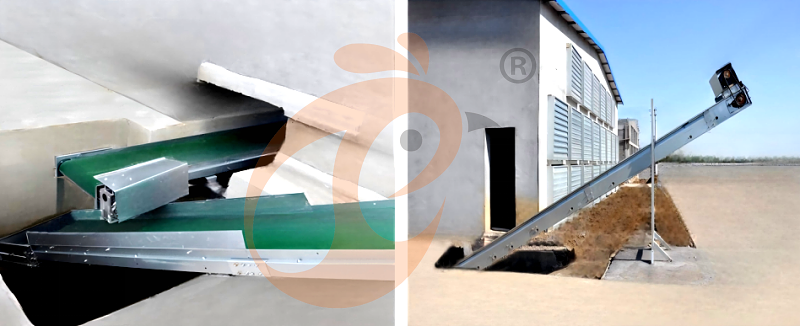

Manure belt end device
To outside the poultry house
- Components: Longitudinal manure belt, cross transmission system, motor with chain drive, manure cart, scraper board, control cabinet, installation connectors.
- Working principle: Manure falls onto the manure belt, which is driven by motor to carry it outside at set intervals.
6. Environmental control and auxiliary accessories (selective assembly)

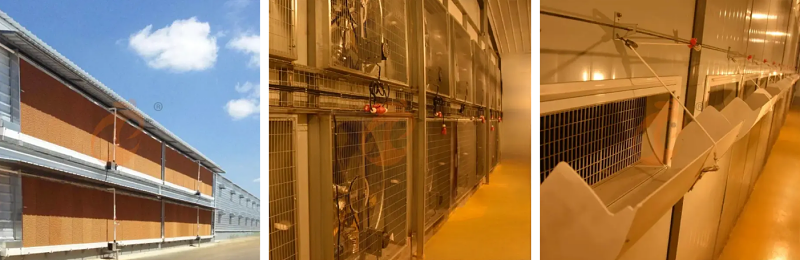

Pads, fans and fresh windows
- Components: Fans, cooling pads, automatic curtains, led lighting, temperature and humidity sensors, automatic ventilation control system, anti-escape barrier, rodent-proof net, installation connectors.
- Working principle: Automatically adjusts temperature, humidity, and air quality in the house according to the chickens’ age.

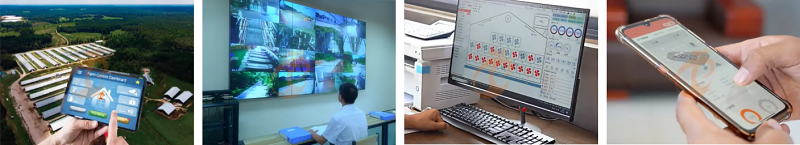

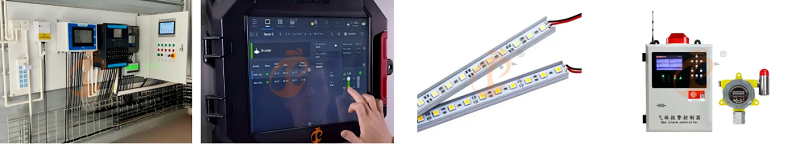

7. Poultry house management (selective assembly)
Farm management APP
Control device and sensors
- Components: Farm CCTV, AI data analysis report, control device, NH3 sensor, other sensors and so on.
- Working principle: One-stop management and control, from CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.
Specific configurations are subject to customer requirements or final quotation.
If you are interested in other equipment of AI smart management, layers, broilers, pullets, feed, eggs, manure and so on, please directly click PRODUCTS

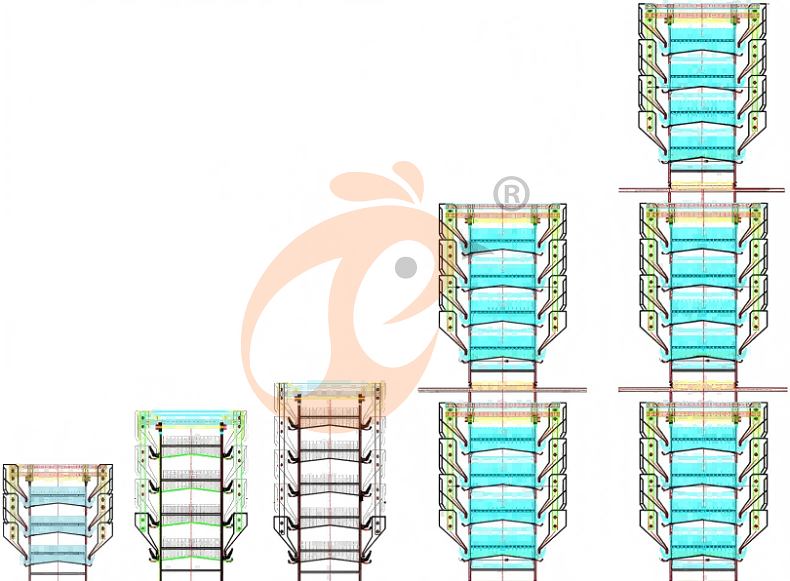

Specification of H type automatic layer battery cage
3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers, 12 Tiers
| Type | Tier/Set | Size(L x W x H)/Unit(Mm) | Cell Size(L x W x H) | Cells/Unit Per Set | Birds/Cells | Birds/Set | Space/Bird(m2) |
| H1 | 4 | 1.2 x 1.2 x 3.3 | 60 x 62.5 x 40 | 16 | 8 | 128 | 0.046 |
| H2 | 8 | 1.2 x 1.2 x 7 | 60 x 62.5 x 40 | 32 | 8 | 256 | 0.046 |
| H3 | 12 | 1.2 x 1.2 x 10.3 | 60 x 62.5 x 40 | 48 | 8 | 384 | 0.046 |
| H4 | 16 | 1.2 x 1.2 x 14 | 60 x 62.5 x 40 | 64 | 8 | 512 | 0.046 |
Capacity of different poultry house size

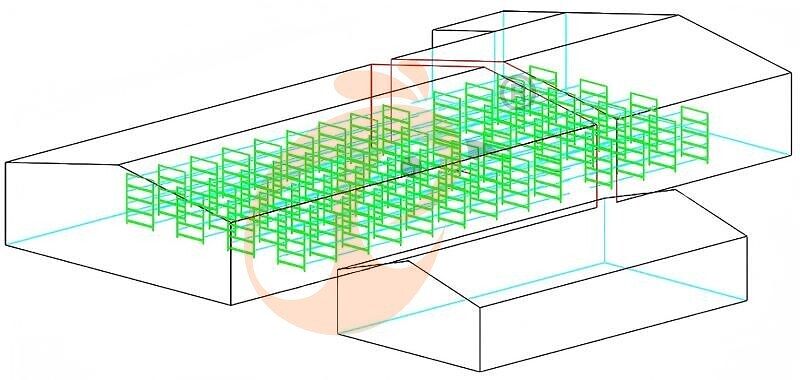

Layout of battery cage system in poultry house
| Component | Regular Data | |||
| Cage Model | 4 tiers | 8 tiers | 12 tiers | 16 tiers |
| House Size:50 x 8 x 5.8-17 (L x W x H) | 14,592 birds | 29,184 birds | 43,776 birds | 58,368 birds |
| House Size: 100 x 8 x 5.8-17 (L x W x H) | 30,720 birds | 61,440 birds | 92,160 birds | 122,880 birds |
| Standard Cage Dimension (L x W x H) | 1.2 x 1.2 x 3.3m | 1.2 x 1.2 x 7m | 1.2 x 1.2 x 10.3m | 1.2 x 1.2 x 14m |
| Birds Per Set | 128 birds | 256 birds | 384 birds | 512 birds |
For reference only, the exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.
1. Since its establishment in 2011, we have rich experience in localization services.
Nigerian local team
2. Constant communication with the United States and Europe, make high-quality battery cage and equipment.
Engineer inspection
3. Lagos local production, save customers 10% to 30% of costs.
Nigerian Factory, workshop and materials
4. Constantly innovate technologies, tailor intelligent project solutions for you.
Intelligent solution
5. Constantly expanding the team, the headquarters in Hong Kong and branches in Nigeria, Tanzania and Ethiopia are joint management.
Branches of China, Nigeria, Tanzania and Ethiopia
Vanke Machinery & Equipment Nig Ltd have serviced farmers and distributors since 2010.
Gain the high trust and recognition from customers to now.
Following farmers are some of our clients, welcome you!
Contact: Whatsapp 24 hours online +234 8111199996.
ADD: after Sinoma Office, 200 meters near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria.
1. Durable and solid structure for long lifetime.
2. Easily to deliver and installation in clients farm and make maintenance.
3. Prompt steps to control feed wastage because of the longer design feed trough edge.
4. The cage method of housing is ideal for the area of large poultry farm.
5. Be used both in open or close house according clients’ needs.
6. Egg production up to 98%.
1. All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.
2. Local factory and warehouse from branches of Ethiopia, Tanzania and Nigeria, depends on your order.
3. Full or less container from China branch by sea, depends on your order.
Nigerian factory, warehouse and delivery
Container shipping from China to Nigeria
Engineer installation In Nigeria
1. After finish installation, clean the feeding trough.
2. Connect water, to make sure the whole drinking system is well from row beginning to end.
3. After 2 years using, move all birds, clean the cage mesh.
4. Replace the nipple drinkers if they link water to protect brid feather, medicinal water will make feather fall off.
5. Check control cabinet, all belts, motor of feeding, egg collection and manure removal and so on, our technicists. will teach yours after installation.
...
