Layer battery cage is for 100 - 10,000+ layers a house, at 12+ weeks old egg laying chicken starting laying. It is lifespan is 25+ years.

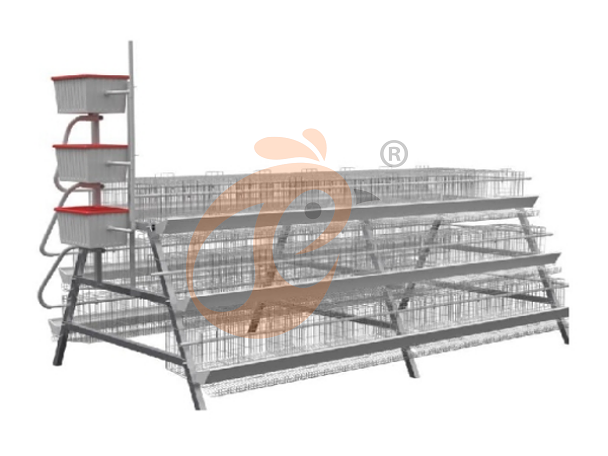

Layer battery cage is with "A" frame, also named A type semi-automatic layer battery cage.
The lifespan of battery cage made by VANKE are 5 years higher than market.

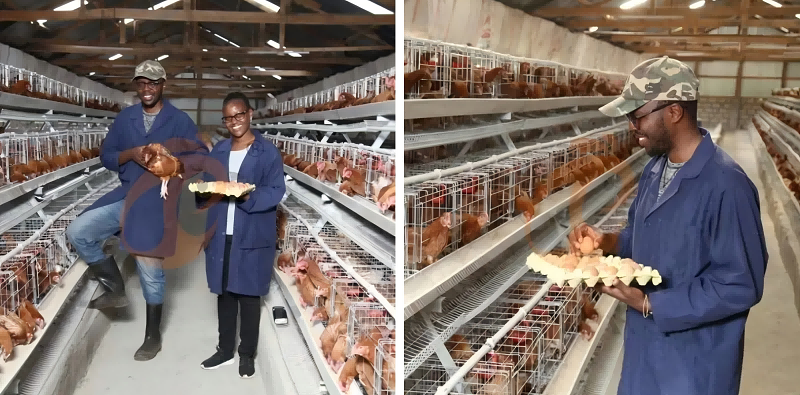

Sample of layer battery cage in Lagos factory
4 tiers 128 birds per set of layer battery cage ready for egg laying chicken in customer' farm
3 tiers 96 birds per set of layer battery cage with egg laying chicken in customer's farm
Accessories Of Layer Battery Cage
1. Cage mesh and frame
2. Automatic drinking system5. Automatic manure cleaning system
6. Environmental control and auxiliary accessories (selective assembly)
7. Poultry house management (selective assembly)
Components And Working Principle Of Layer Battery Cage
1. Cage mesh and frame
Stronger galvanized material
- Components: Bottom mesh Φ2.3–2.7mm, side/partition mesh Φ2.0–2.5mm, main frame Φ4.0mm, galvanized channel/angle steel columns, reinforcing rods, anti-corrosion coating.- Working principle: Stable structure; bottom mesh sloped 5°–7° for eggs to roll naturally into the egg trough.

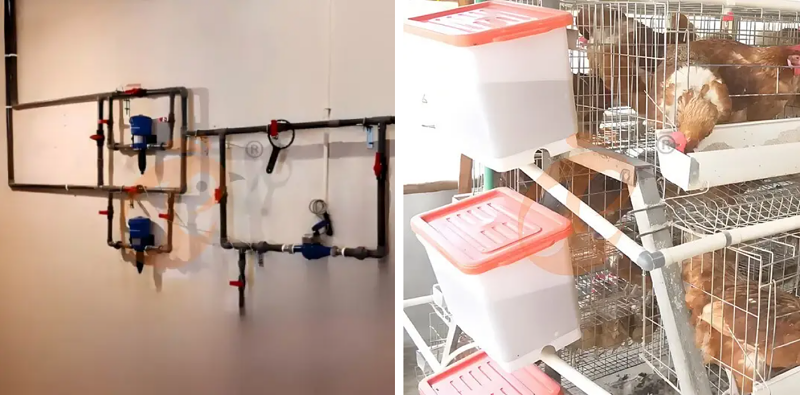

Water line
- Components: PVC main and branch pipes, stainless steel nipple drinkers, anti-drip devices, water pressure regulator, end cleaning valve, optional water tank or filtration system.
- Working principle: Water is evenly supplied; chickens peck to drink, ensuring clean and efficient water access.

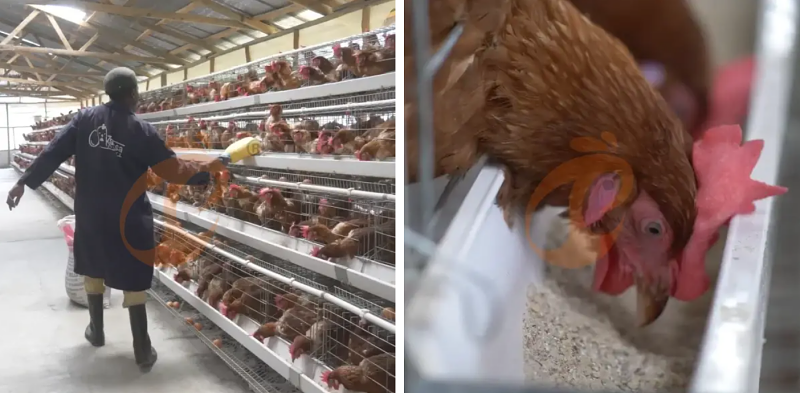

Wroker adds food
- Components: Galvanized iron or PVC long feeding trough, hooks, baffles, semi-automatic feeding cart (optional), feeding channels, anti-waste plate (optional).- Working principle: Feed is evenly distributed; chickens feed freely, reducing waste.

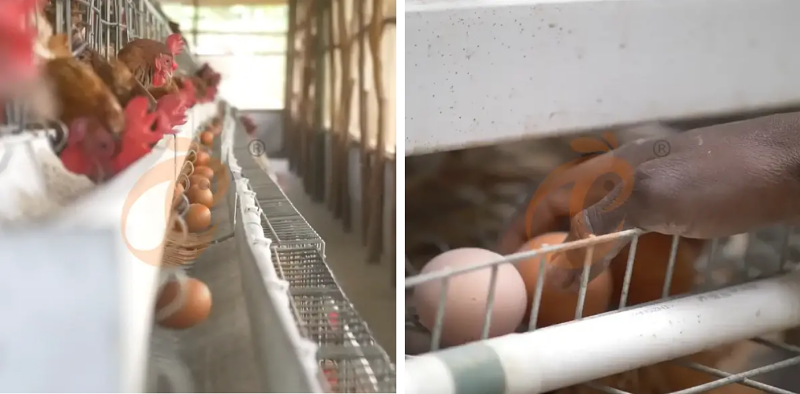

Workers pick up eggs
- Components: Egg trough, edge guards/cushion pads, collection channels/carts, optional small semi-automatic conveyor.- Working principle: Eggs roll along the slope into the trough; collected manually along the passage.

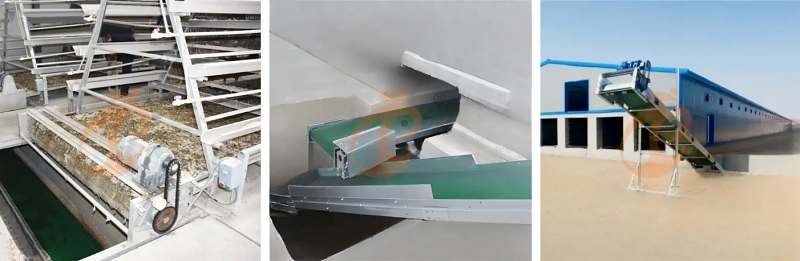

Type 1 belt cleaning to outside
Type 2 scraper cleaning to outside
- Components: Manure gutter/belt, scraper/scraper machine, motor + chain/wire rope, manure transfer cart, timer controller.- Working principle: Manure is collected and removed regularly, keeping the house clean.
6. Environmental control and auxiliary accessories (selective assembly)
Pads, fans and fresh windows
- Components: Fans, cooling pads, automatic curtains, led lighting, temperature and humidity sensors, automatic ventilation control system, anti-escape barrier, rodent-proof net, installation connectors.
- Working principle: Automatically adjusts temperature, humidity, and air quality in the house according to the chickens’ age.
7. Poultry house management (selective assembly)
Farm management APP
Control device and sensors
- Components: Farm CCTV, AI data analysis report, control device, NH3 sensor, other sensors and so on.
- Working principle: One-stop management and control, from CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.
Specific configurations are subject to customer requirements or final quotation.
If you are interested in other equipment of AI smart management, layers, broilers, pullets, feed, eggs, manure and so on, please directly click PRODUCTS

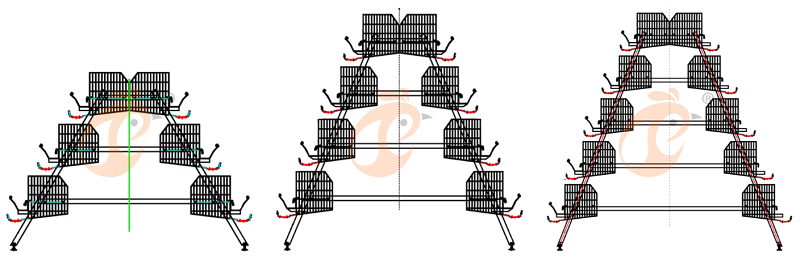

Specification of A type semi-automatic layer battery cage
3 Tiers, 4 Tiers, 5 Tiers
| Type | Tier/Set | Size(L x W x H)/Unit(Mm) | Cell Size(L x W x H) | Cells/Unit Per Set | Birds/Cells | Birds/Set | Space/Bird(m2) |
| A1 | 3 | 2.2 x 2.4 x 1.65 | 43 x 38 x 38 | 30 | 4 | 120 | 0.04 |
| A2 | 4 | 2.2 x 2.4 x 1.95 | 43 x 38 x 38 | 40 | 4 | 160 | 0.04 |
| A3 | 5 | 2.2 x 2.4 x 2.25 | 43 x 38 x 38 | 50 | 4 | 200 | 0.04 |
Capacity of different house size

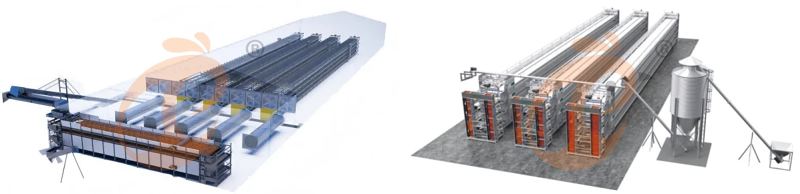

Layout of battery cage system in poultry house
| Component | Regular Data | ||
| Cage Model | 3 tiers | 4 tiers | 5 tiers |
| House Size:50 x 12 x 4.15-5.25 (L x W x H) | 7,200 birds | 9,600 birds | 12,000 birds |
| House Size: 100 x 12 x 4.15-5.25 (L x W x H) | 15,480 birds | 20,640 birds | 25,800 birds |
| Standard Cage Dimension (L x W x H) | 2.2 x 2.4 x 1.65m | 2.2 x 2.4 x 1.95m | 2.2 x 2.4 x 2.25m |
| Birds Per Set | 120 birds | 160 birds | 200 birds |
For reference only, the exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.
1. Since its establishment in 2011, we have rich experience in localization services.
Nigerian local team
2. Constant communication with the United States and Europe, make high-quality battery cage and equipment.
Engineer inspection
3. Lagos local production, save customers 10% to 30% of costs.

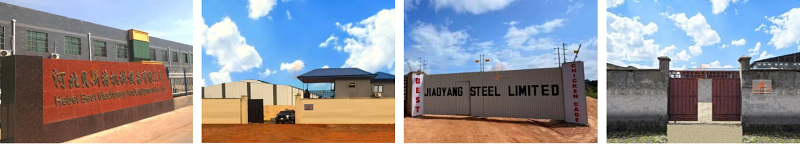

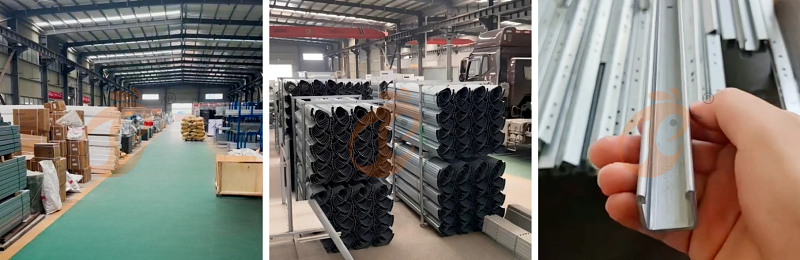

Nigerian Factory, workshop and materials
4. Constantly innovate technologies, tailor intelligent project solutions for you.
Intelligent solution
5. Constantly expanding the team, the headquarters in Hong Kong and branches in Nigeria, Tanzania and Ethiopia are joint management.
Branches of China, Nigeria, Tanzania and Ethiopia
Vanke Machinery & Equipment Nig Ltd have serviced farmers and distributors since 2010.
Gain the high trust and recognition from customers to now.
Following farmers are some of our clients, welcome you!
Contact: Whatsapp 24 hours online +234 8111199996.
ADD: after Sinoma Office, 200 meters near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria.
1. All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.
2. Local factory and warehouse from branches of Ethiopia, Tanzania and Nigeria, depends on your order.
3. Full or less container from China branch by sea, depends on your order.

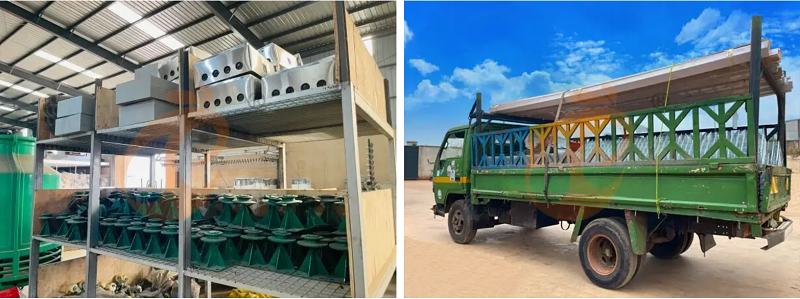

Nigerian factory, warehouse and delivery
Container shipping from China to Nigeria

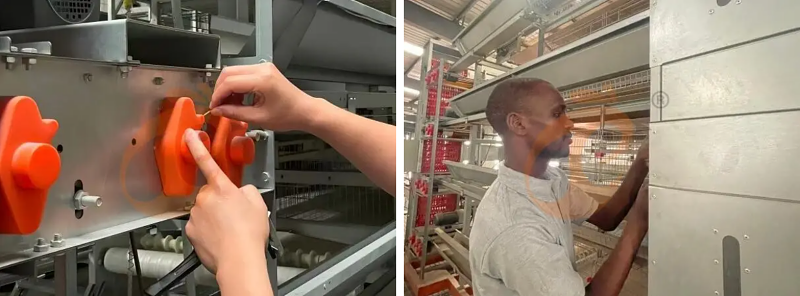

Engineer installation
1. Connect water, to make sure the whole drinking system is well from row beginning to end.
2. Replace the nipple drinkers if they link water to protect bird feather, medicinal water will make feather fall off.
3. In 1- 2 years move all birds, clean the cage mesh and check the fast fittings of poultry equipment, also motors.
...
