Chick battery cage is for 50,000 - 100,000+ chicks a house, at 2 - 12 weeks day old chicks for future laying. It is lifespan is 25+ years.

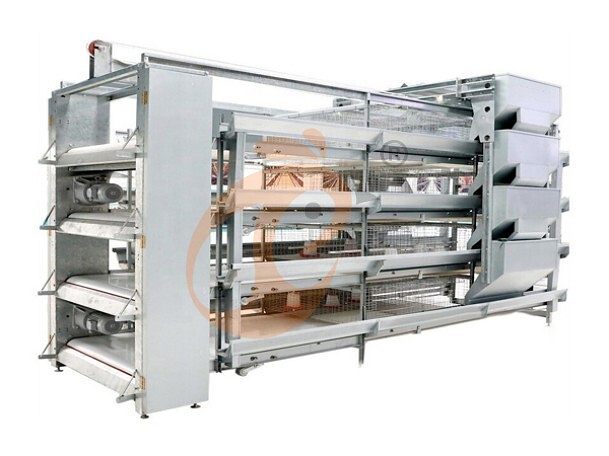

Chick battery cage is with "H" frame, also named H type automatic chick battery cage.
The lifespan of battery cage made by VANKE are 5 years higher than market.

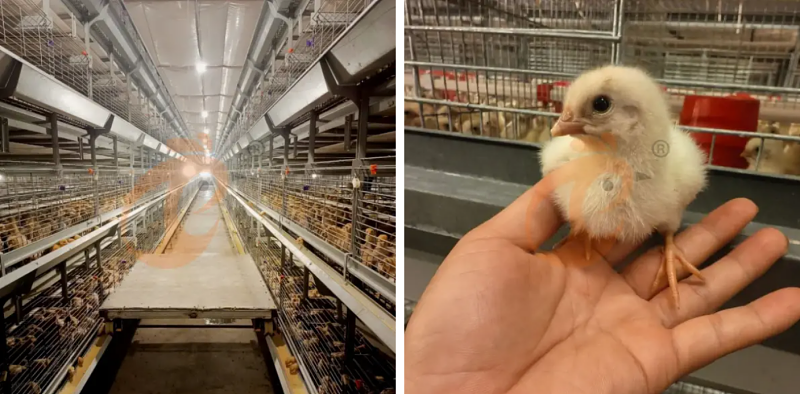

Vanke's chick battery cage is using in customer 's poultry farm.
Chick battery cage we introduced here is mainly rearing baby egg laying chicken, chick battery cage also is named to pullet cage or brooder cage. if you want to learn baby broiler cage, please check broiler cage.
VANKE chick cage rears baby egg laying chicken from one day old chicks, after 12 weeks or 16 weeks it grows up and near egg laying time, farmers will transport them to egg laying battery cage also named layer battery cage, finish the whole rearing processing.
Accessories Of Chick Battery Cage
1. Cage mesh and frame
2. Automatic drinking system4. Automatic manure cleaning system
5. Environmental control and auxiliary accessories (selective assembly)
6. Poultry house management (selective assembly)
Components And Working Principle Of Chick Battery Cage
1. Cage mesh and frame
Stronger galvanized material

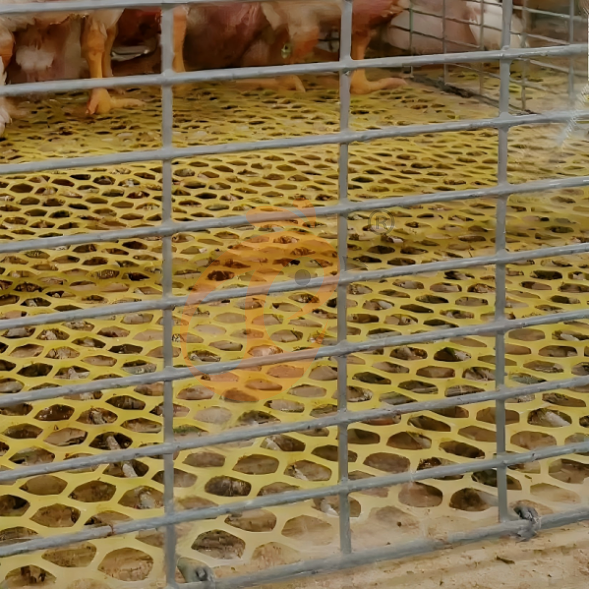

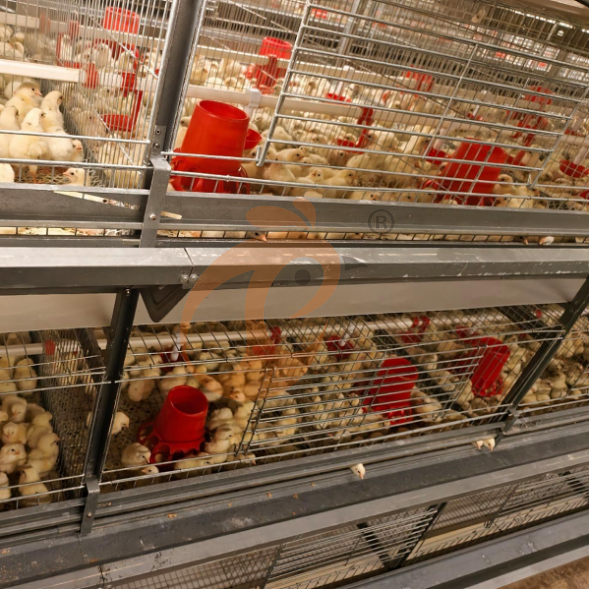

Plastic mesh for young chick standing
- Components: Bottom mesh Φ2.0–2.3mm, side/partition mesh Φ1.8–2.0mm, main frame Φ3.5–4.0mm, galvanized channel steel/angle steel columns, reinforcing rods, plastic floor mesh for chick foot protection, installation connectors (bolts, clips, hooks, brackets).
- Working principle: H-type cage structure with 4–16 tiers, stable frame design, and plastic mesh protects chicks’ feet.
2. Automatic drinking system

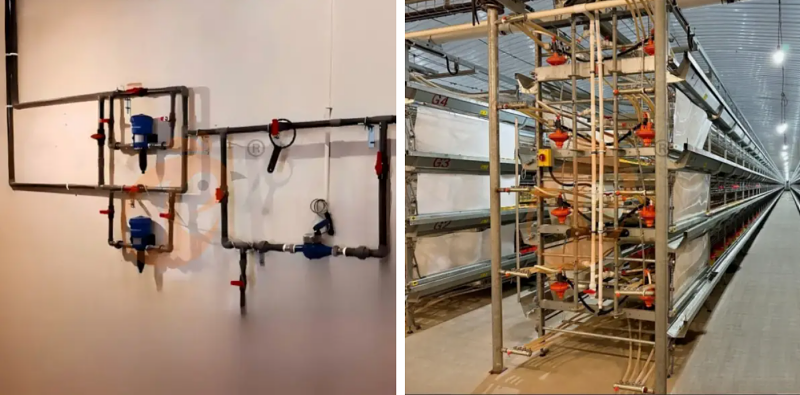

Water beginning line
Drinking line
- Components: PVC water pipe, chick-type low-pressure nipple drinkers, water regulator, water tank, doser, installation connectors.
- Working principle: The system provides stable water supply, chicks drink by pecking nipples, the drinking line height can be adjusted as chicks grow, and the doser allows automatic delivery of medicines or nutrients.
3. Automatic feeding system

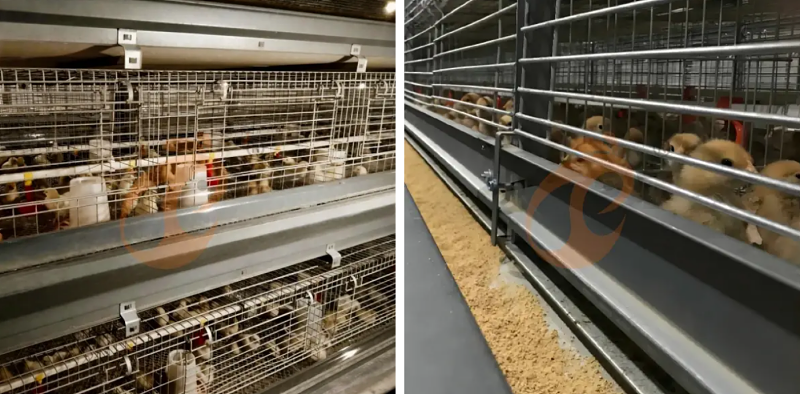

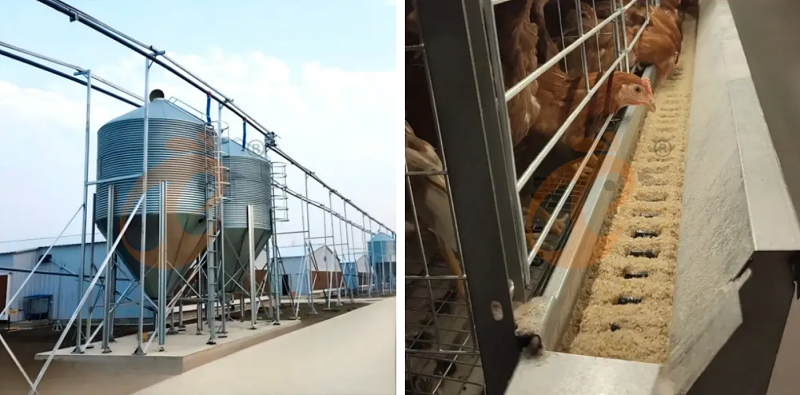

Feed storage silo and type 1 chain feeding system
Type 2 hopper feeding system and Type 3 hopper feeding system

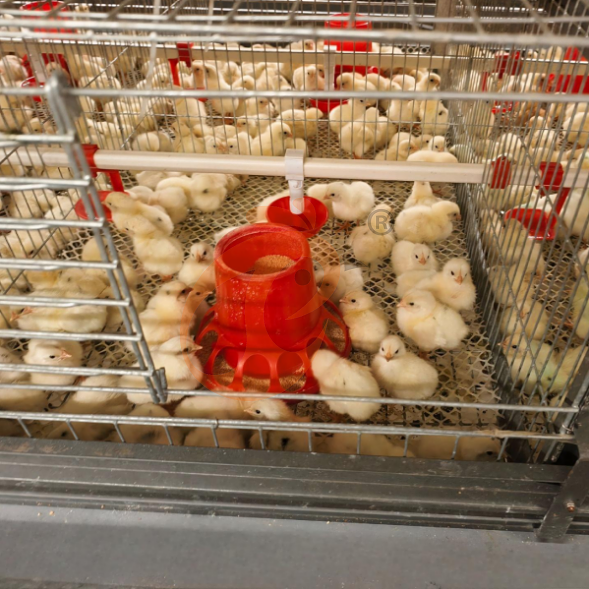

Small red feeder for young chicks eating
- Components: Spiral or chain-type feed conveyor, lateral feed troughs, feed hopper, drive motor, feed tower (with automatic discharge device), anti-waste baffles, automatic control cabinet, installation connectors
- Working principle: Feed is stored in the feed tower and discharged into the spiral or chain conveyor. The motor drives the conveyor, and the control cabinet manages timed feeding, automatically delivering feed to all tiers evenly and reducing waste
4. Automatic manure cleaning system

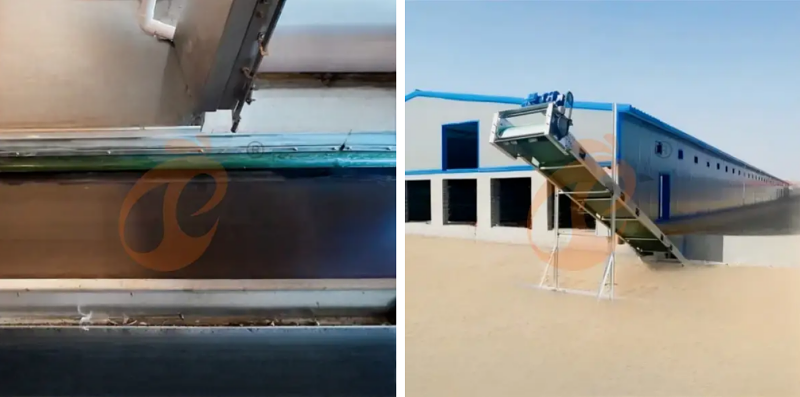

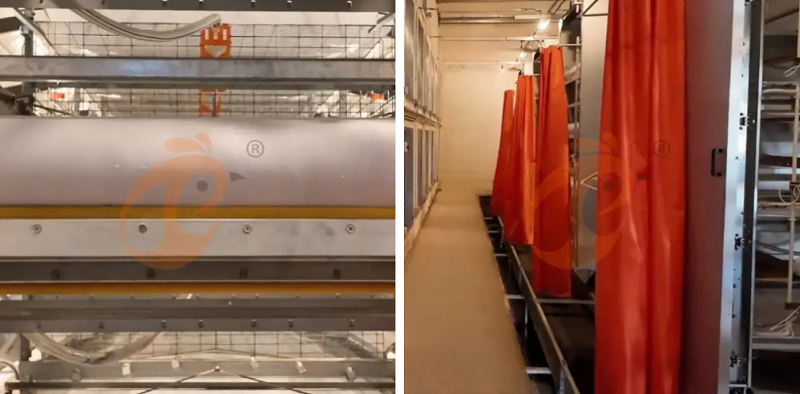

Manure belt device of bottom cage and end device
To outside the poultry house
- Components: Longitudinal manure belt, cross transmission system, motor with chain drive, manure cart, scraper board, control cabinet, installation connectors.
- Working principle: Manure falls onto the manure belt, which is driven by motor to carry it outside at set intervals.
5. Environmental control and auxiliary accessories (optional)

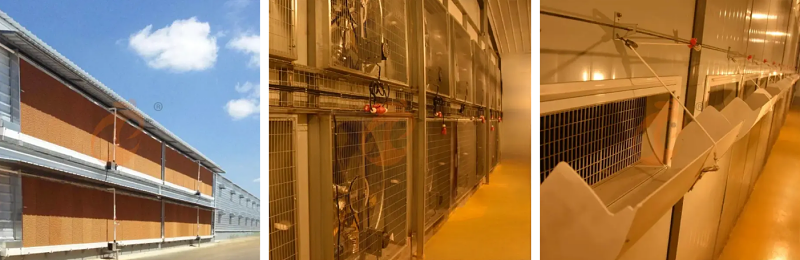

Pads, fans and fresh windows

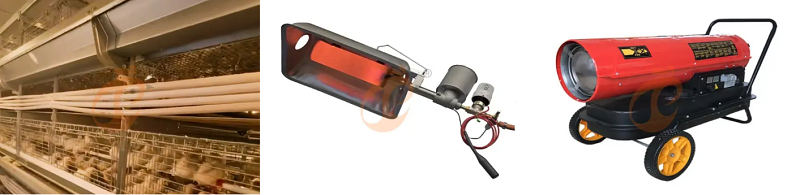

Warm pipe and warm machine
- Components: Fans, cooling pads, LED lights, simple curtains, warmer, temperature and humidity sensors, anti-escape bars, anti-rat nets, installation connectors.
- Working principle: Provides basic ventilation, lighting, and temperature adjustment, ensuring a suitable growth environment for chicks.
6. Poultry house management (selective assembly)
Farm management APP
Control device and sensors
- Components: Farm CCTV, AI data analysis report, control device, NH3 sensor, other sensors and so on.
- Working principle: One-stop management and control, from CCTV to giving order to every house, from date collection to AI data analysis report of feed, growing and so on, abnormal condition detection and alarm system.
Specific configurations are subject to customer requirements or final quotation.
If you are interested in other equipment of AI smart management, layers, broilers, pullets, feed, eggs, manure and so on, please directly click PRODUCTS
Specification of H type automatic chick battery cage

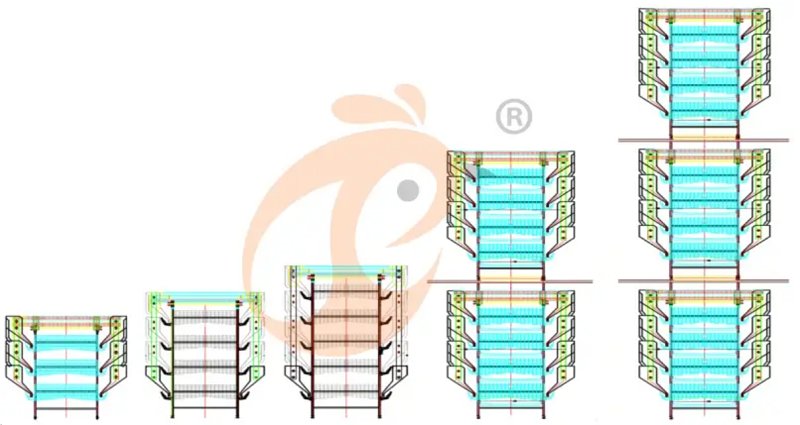

3 Tiers, 4 Tiers, 5 Tiers, 8 Tiers, 12 Tiers
| Tier/Set | Size(L x W x H)/Unit(Mm) | Cell Size(L x W x H) | Cells/Unit Per Set | Birds/Cells | Birds/Set | Space/Bird(m2) |
| 4 | 1.2 x 1.2 x 3.2 | 60 x 60 x 42 | 16 | 12 | 128 | 0.03 |
| 8 | 1.2 x 1.2 x 6.4 | 60 x 60 x 42 | 32 | 12 | 256 | 0.03 |
| 12 | 1.2 x 1.2 x 9.6 | 60 x 60 x 42 | 48 | 12 | 384 | 0.03 |
Capacity of different poultry house size
Layout of battery cage system in poultry house
| Component | Regular Data | ||
| Cage Model | 4tiers | 8 tiers | 12 tiers |
| House Size:50 x 8 x 6.1-12.6 (L x W x H) | 14,592 birds | 29,184 birds | 43,776 birds |
| House Size: 100 x8 x 6.1-12.6 (L x W x H) | 30,720 birds | 61,440 birds | 92,160 birds |
| Standard Cage Dimension (L x W x H) | 1.2 x 1.2 x 3.2m | 1.2 x 1.2 x 6.4m | 1.5 x 2.2 x 9.6m |
| Birds Per Set | 128 birds | 256 birds | 384 |
Place the day old chicken cages on the first and second layers, and leave the third layer empty. When the chicks grow to a certain age, place them evenly on each layer.
For reference only, the exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.
1. Since its establishment in 2011, we have rich experience in localization services.
Nigerian local team
2. Constant communication with the United States and Europe, make high-quality battery cage and equipment.
Engineer inspection
3. Lagos local production, save customers 10% to 30% of costs.
Nigerian Factory, workshop and materials
4. Constantly innovate technologies, tailor intelligent project solutions for you.
Intelligent solution
5. Constantly expanding the team, the headquarters in Hong Kong and branches in Nigeria, Tanzania and Ethiopia are joint management.
Branches of China, Nigeria, Tanzania and Ethiopia
Vanke Machinery & Equipment Nig Ltd have serviced farmers and distributors since 2010.
Gain the high trust and recognition from customers to now.
Following farmers are some of our clients, welcome you!
Contact: Whatsapp 24 hours online +234 8111199996.
ADD: after Sinoma Office, 200 meters near Danco Filling Station, Lagos/Ibadan Expressway, Lagos State, Nigeria.
1. Poultry farmers quickly obtain all the data of their poultry farm.
We have artificial intelligent management system, such as viewing the data of feed consumption, growth rate and so on of all chicken houses through the APP installed on your mobile phone, I-pad or computer.
2. Pullets' growing rate is over 20% than common type together with high-quality feed formulas.
From European design style, our structure is more suitable for the activities of pullets.
3. 1 person manages 3 or more pullet chicken houses
There are intelligent control operation, automated alarm equipment, saves much more labor costs.
4. It is service life of more than 20 years
Meets European quality standards, components imported from Japan, Europe, USA, more corrosion-resistant and durable.
1. All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.
2. Local factory and warehouse from branches of Ethiopia, Tanzania and Nigeria, depends on your order.
3. Full or less container from China branch by sea, depends on your order.
Nigerian factory, warehouse and delivery
Container shipping from China to Nigeria
Engineer installation
7. Every time clean pullet chicken cage system and corollary system after move all pullets out, or before put new pullets.
...
