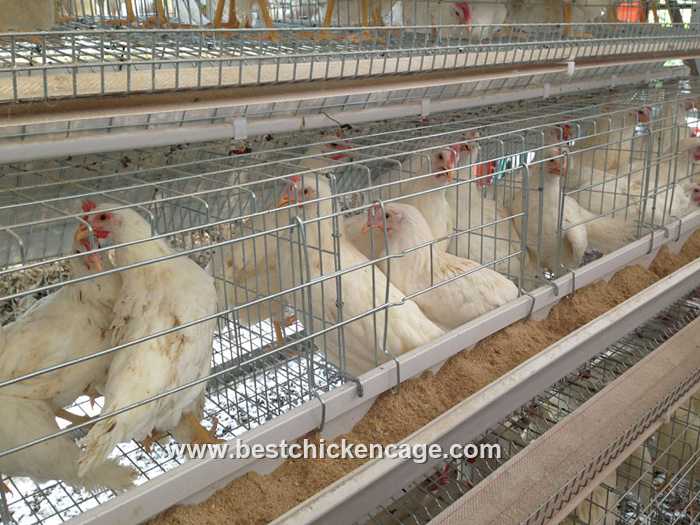

A Type Automatic Chicken Cage

Best® Automatic chicken cage - chicken cage manufacturer since 1996 and African branch and office since 2009

It is designed both open and close house all over the world,especially for open house in big farm who has enough land,it is more suitable to be used in tropical zone such as Africa,South East Asia and South Asia Countries, used for layers, broilers and pullets, followed sample is A type of automatic chicken cage for layers.

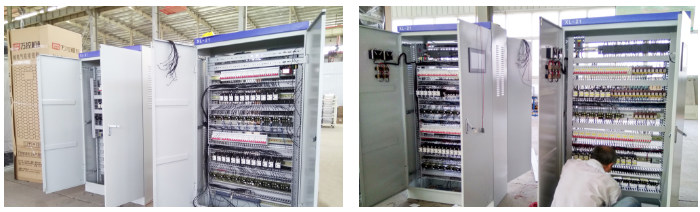

Electric control cabinet

The feeding,drinking,egg collection and manure removal system all controlled by the electricity control panels.the ventilation fans,cooling pads,sidewall ventilation windows also controlled together automatic.

Automatic Feeding System

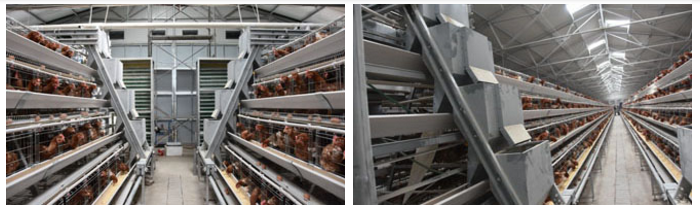

The chicken feed stored in the silo nearby and sent by transverse feed auger with motor automatic.the feeding machines can be feeding trolley type or chain feeding system.
Automatic Drinking System
Square or Round pipes(thickness 2.5mm) with stainless steel nipple drinkers,and constituted by Water Pressure Regulators,filters and dosers from DOSATRON.

Automatic manure removal system

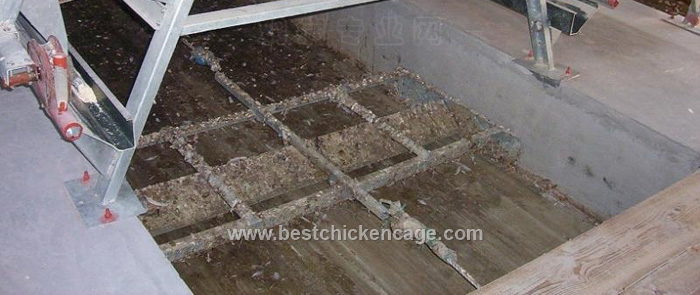

Inside: The Manure Collection can be scraper type or manure belts conveyor type.

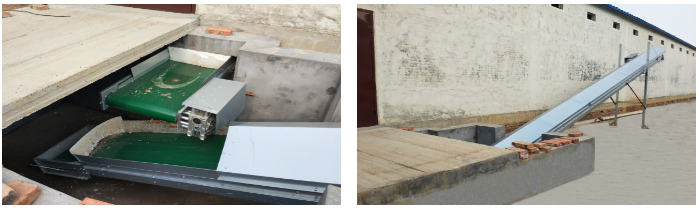

Outside: The manure removal belt is made of white PP product which made in Italy,the belt system is consisting of front cap rollers stretching and internal scrapping off apparatus as well as the rear scrapping off rollers, pressing balls,external scrapping off apparatus, conveyor drive systems and the electrical reducer engines.a cover has been placed at back of the manure belts for avoid splashing and not to make dirty hen house and transfer the manure to the conveyor as dandy.

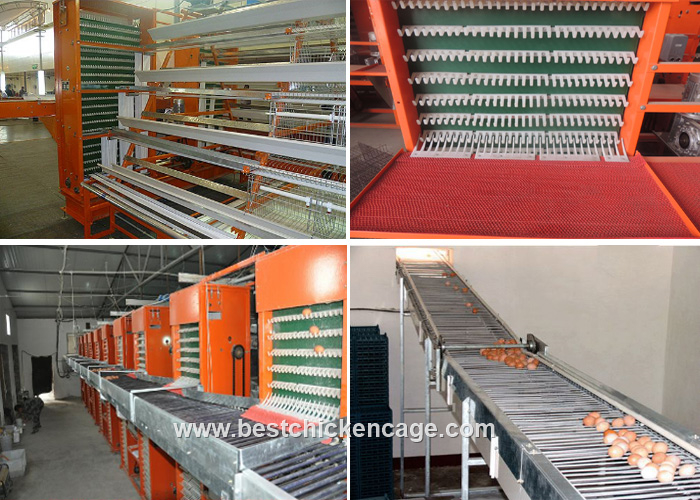

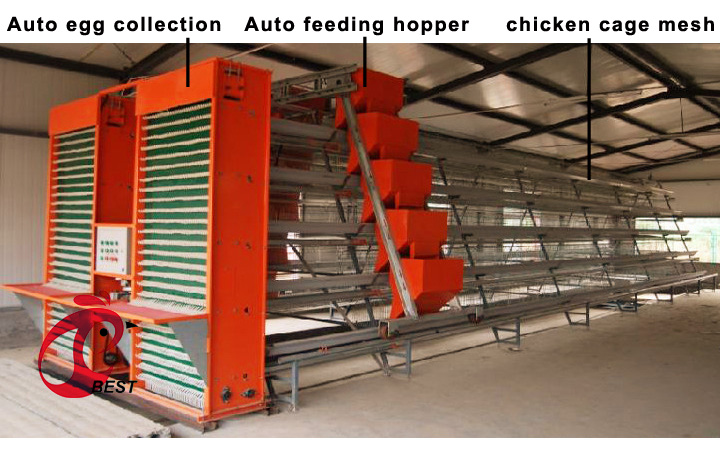

Egg-collection System:
Egg production much than floor raising and all egg can be equipped with vertical automatic egg collection system and egg conveyor available to the egg store room.

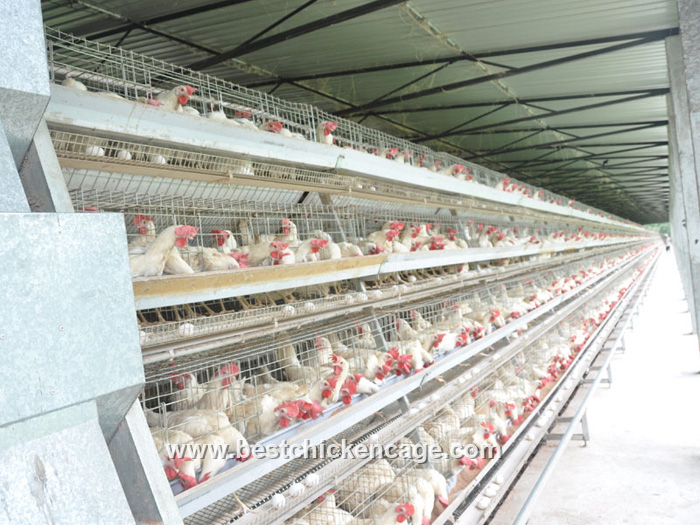

A Type Chicken Layer Cage for Sale
Material: Hot Dip galvanized steel
Tiers: 4 Tiers
Capacity: 128 chickens per set
Size: 1870mm*370mm*370mm-315mm
Area of per Chicken: 432 cm2


With state of the art facilities,powerful R & D team and rigorous quality management system, Best has owned undoubtedly the strength to become your preferred partner to build modern automated poultry farms.In addition,we have an experienced,quick-response project team which helps customers with poultry farm location planning,chicken house design and construction and equipment installation as well as provides product upgrade and free technical consulting services.

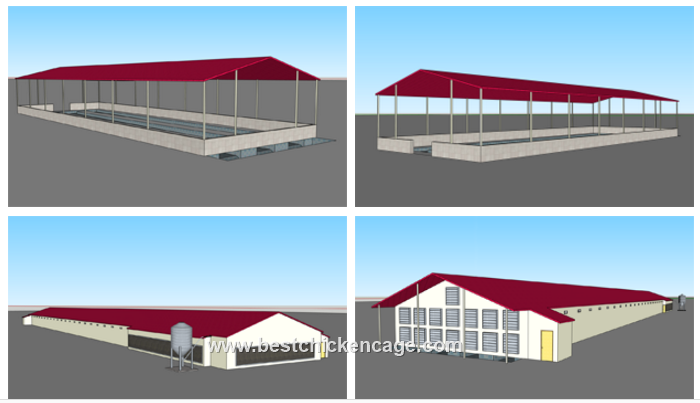

Full project from house design after chicken cage and equipment installation, please click:

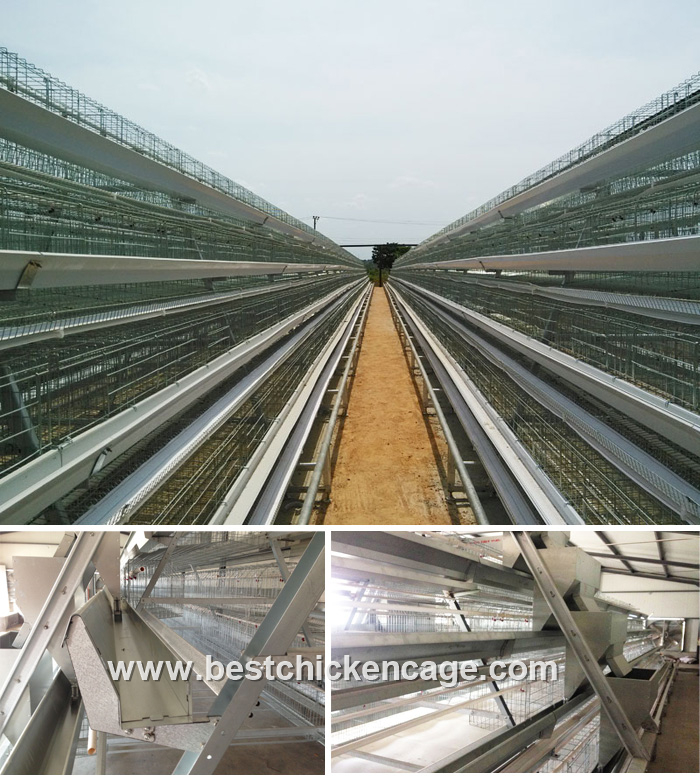

A Frame Layer Cage System Project in Africa


●Greater number of birds is reared per unit of area and it helps in identifying poor producers and prompt culling,so it saves more cost for Farmers because its much lower investment as H Frame Cage System;
●More Suitable to use in rain-less district,durable and solid structure for long lifetime;
●Easily to deliver and installation in clients farm and make maintenance;
●Prompt steps to control feed wastage because of the longer design feed trough edge;
●The cage method of housing is ideal for the area of moderated climate conditions where the day temperature in summer is not high or fall too low;
●The overlap parts is smaller so the chicken house can get much better ventilation,it can be used both in open or close house according clients’ needs.


The cage and frame are no package , some fittings are in plastic bags and carton box.
1. Less of full container: below 80 sets, first packed with plastic film then on the pallets
2. Full container: Nude packing


1. After finish installation, clean the feeding trough
2. Connect water, to make sure the whole drinking system is well from row beginning to end
3. After 2 years using, move all birds, clean the cage mesh
4. Replace the nipple drinkers if they link water to protect brid feather, medicinal water will make feather fall off
