Layer Cage

Welcome to BEST Layer chicken cage, I am Anny Wang, shorterly introduct of our company, Our layer cage supplying to African since 2009to now, now we own factory in Lagos, NG and office and warehouse in some other African countries. Our cage is 10 years no rusting quality guarantee.


What is layer chicken cage?

Layer cage also named poultry cage or battery cage and mainly is rearing egg laying chicken, after pullet growing up to 12 weeks or 16 weeks transport them to layer cage. Its biggest advantage is increasing egg production, easily handle chicken waste and reduce disease transmission.


1) How chicken drinking ?

Mark “1” is nipple drinker and water pipe, automatic water out when chicken mouth touch drinker
2) how feeding chicken ?
Mark “2” is feeding tough, add chicken feed manually
3) how eggs out ?
Mark “3” is egg bottom mesh, about 6cm space opening for egg rolling out
4)when chicken transfer to cage ?
12 weeks to 16 weeks in laying egg producing period

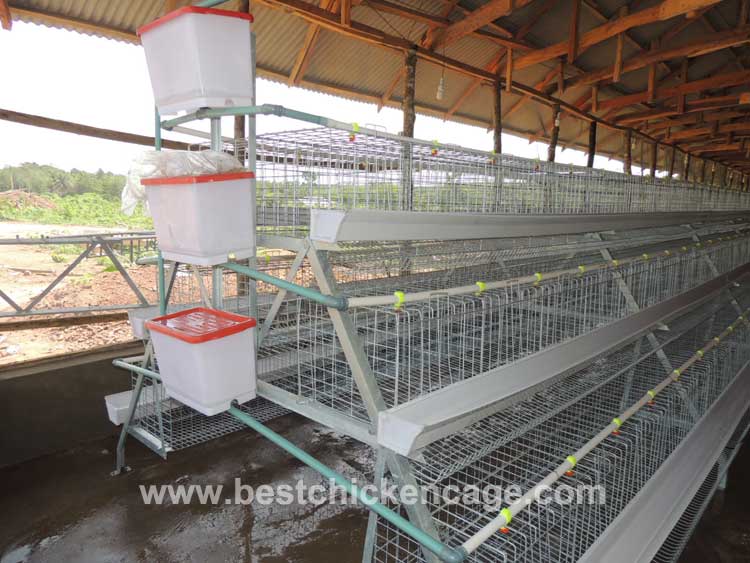

One single set of layer chicken cage

A single set of Layer cage includes cage mesh, cage frame, feeding trough, water pipe and tank, nipple drinker (drinking automaticly) and installation nuts. Egg roll out on egg bottom mesh


Type  - 120 birds/set

1) A type, 3 tier
2) Cage size: L by W by H: 2.2m by 2.4m by 1.65m
3) One set is between two frames, picture is two sets of cage, mutual frames make to cage line
4) Water tank is one line three piece


Delivery of layer chicken cage


Now BEST own warehouse and office in Nigeria, agent in Kenya and so on African countries, so it is easy for you to check quality of chicken cage or poultry farm equipment,

BEST own local bank account and transportation service, we will delivery goods to your farm directly, it is very convenience for local farmers

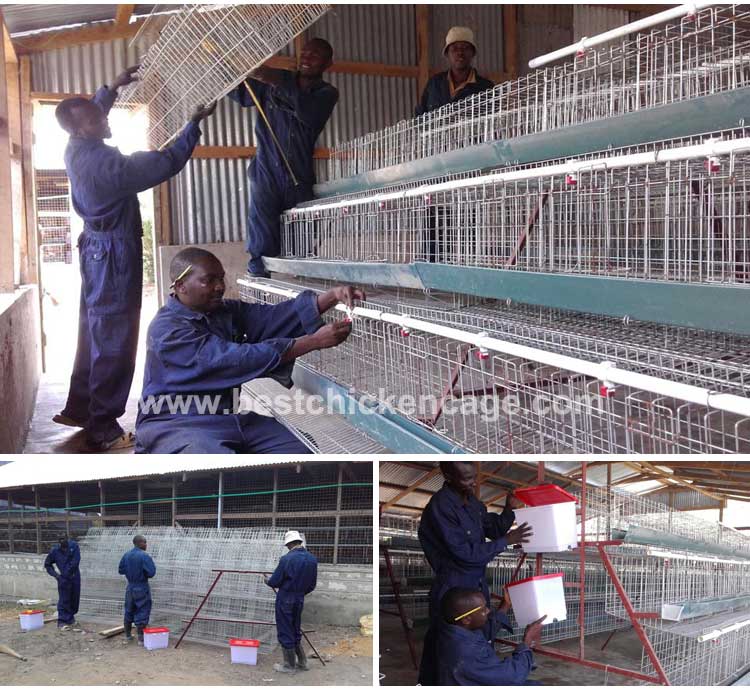

Installation of layer chicken cage


Most farmers are worried about poultry battery cage installation after ordered, indeed no need, Installation tools such as nuts and pliers will come with your poultry battery cage, the installation is easier than what you think, you will get the installation instruction and video before you get the goods.

In some African countries we also have installation team if you need service too.

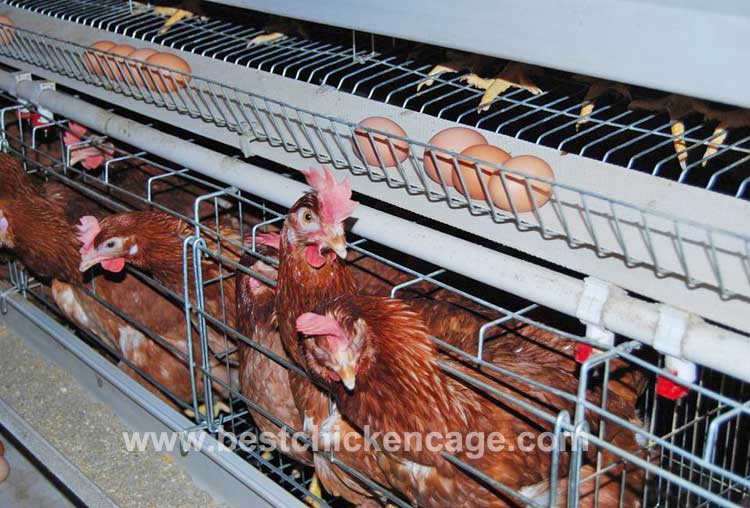

How will BEST layer chicken cage looks like with chicken in your farm? As same as following pictures.



There are many size and type of layer cage in market, you should choose as weight and size of your birds, also the climate in your country.

For example, cage of 1.5KG birds is smaller than cage of 2.5KG birds. Cage of 2.5KG birds is stronger than cage of 1.5KG birds, cages in hot weather such as NIGERIA, UGANDA and so on African countries is rusting faster than cages in cool weather the lifespan of same quality of chicken layer cage will be very different.

Besides the price these factors should consider too.


What the poultry house size will be? the transection of 5000 birds a house as a sample

1.Chicken house: L × W × H = 168ft × 22.6ft × 11.5ft (51m×7m × 3.5m )
2.Wall height: 1.65ft
3.Wire mesh height: 9.85ft
4.Walking way: 3.6ft
5.Pit width: 5.9ft
6.Distance between cage row and front wall or end wall: 5ft
7.24 sets/row
8.2 rows totally
9.48 sets/house
10.5,184 birds totally


How to build House ground/Pit ?

Following picture is showing the installation of manure cleaning system


1)Depth: about 30cm
2)Width: 1.8m (5.9ft)
3)Length: it is as the chicken house, the pool is outside the chicken house
4)  Passage: 30cm higher than level, pit is at level line, dung is easy to clean outside chicken house

Of course you will get instruction of manure scrapers with your poultry cage


What is the necessary equipment besides layer chicken cages for different capacity of birds?

1. below 2000 birds

Manual battery cage, workers will put food in chicken trough and picked eggs, in future if you want to enlarge your farm to 10,000+ birds, our automatic feeding equipment and automatic egg collection will be installed on the using layer cage directly.

2. between 5000 birds to 20000 birds

Beside battery cage, we advice you choose manure removal system, chicken dropping cleaning once a day or two days, keep poultry house cleaning and air fresh, reduce disease and improve egg production rate. Some farmers also make feed themsevle and order feed scrusher and mixer, manure drying machine

3. 50000+ birds

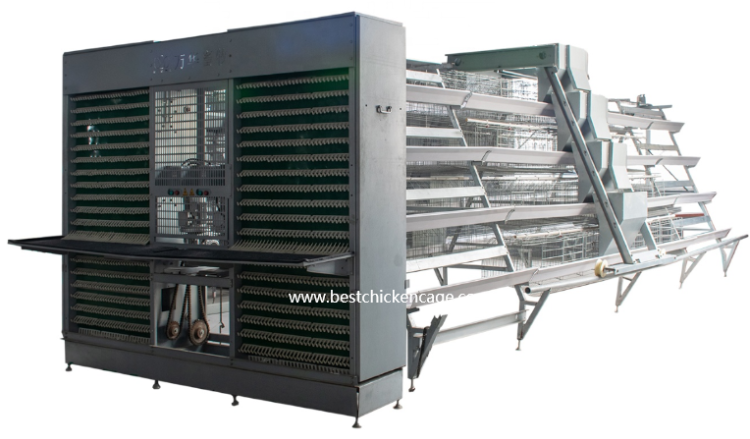

Farmers could have 4 or 5 houses to contain, large one should consider some automatic equipment, 1 or 2 person manages a house, auto feeding hopper, auto egg collection and manure removal system, feed mill and manure drying machine too.

Above is our experience with our customers.


Other products you may interest in, click  Manure Removal System  Maure drying machine

Helpful blog you may need, click   type of Poultry house of 5000 layer in NIGERIA  How to start your poultry farm


I am Director Mrs Anny Wang.

24 hours Online whatsApp +86 13663282016, +234 8111199996, telephone NO. same, Email to sales@bestchickencage.com

Office and factory in Lagos, Nigeria: Rose of Sharon Plaza by Oko filing bus stop, Igando road, opposite Oando filling station,Lagos

Other african countries we have customers with farms, welcome your visiting


Get quotation of chicken cage and equipment,  chicken house design, please,

Which month do you starting building your chicken house?
How many birds firstly starting like 2000, 5000 or 10,000?
How many plots of your land? Cleaned or weeds still?

Contact me now


Specification

It is A type, according to capacity per set, the specification is as followed

Type A-120 A-128 A-160 A-200
Item 3 tiers /5 doors 4 tiers /4 doors 4 tiers /5 doors 4 tiers /5 doors
Set capacity 120 birds 128 birds 160 birds 160 birds
Cell capacity 4 birds 4 birds 4 birds 4 birds
Cage size
(L*W*H)
2.0m*1.9m*1.62m 2.0m*2.3m*1.9m 2.0m*2.4m*1.9m 2.0m*3m*1.95m
Cell size
(L*W*H)
39cm*34cm*37cm 49cm*35cm*38cm 39cm*35cm*38cm 40cm*40cm*40cm

Fittings details

Name Description
Water pipe new PVC material,
no deformation,high temperature resistance,not easy to damage.
Nipple drinker warranty>10 years
Stainless steel ball inside nipple drinker
 Feed trough loading capacity>60kg/pc, White PVC material,
adults can walking on it and not easy to be damaged during transport
Galvanized cage mesh One cage basket
Door, top mesh, back mesh, bottom mesh and partition mesh
Steel cage frame warranty>20 years
Iron bar, Galvanization surface treatment,
Fixing accessories Connector of water pipe and feeding trough
Cage clips, cage frame nuts and so on
Water pressure controlling system Including the terminal device and water-split device,supply average water to the pipe

Why VANKE®

Why Layer Cages by Best® is The Best® for Chicken rearing and laying Eggs?

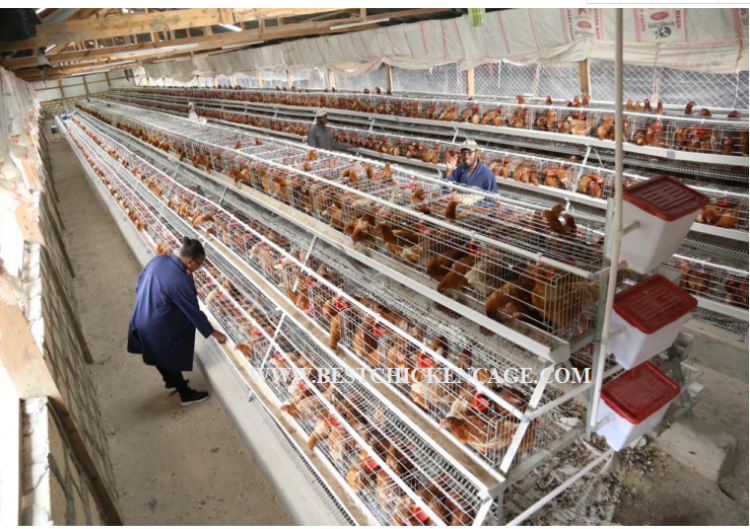

Thank customer supplying pictures of our chicken cage using in his farm


1. Raw material selection
Carbon content decides the metal wire hardness, our metal wire for cage ordered from China big steel factory, high hardness and high elastic deformation, make the cage mesh no deformation, cage lifespan improves 3 years at least than common factory
2. Up to 20 years using
Quality hot deep galvanized cage mesh will ensure your cage that it remains protected from corrosion and rust for 10 years at least
3. Cage mesh design
Big sliding door design is easy to pick chicken, The density of bottom cage mesh can prevent feather and anus pecking and prevent layer chicken fatigue syndrome.
4. save the land area
saves 50% of the land than Cage-free type breeding. have a  good ventilation and lighting, efficiently prevent disease infection, improve the survival rate and egg collection of chicken.

Project

1. After the egg laying grow up to 12 week or 16 weeks, it starts laying egg, then transfer them to layer cage
2. Your layer cage layout will be designed as your chicken house, freely supply house design and layerout
3. Normally the walking way is between 0.7m to 1m, building pit under cage system, the distance between the wall and cage row is 0.7m

Thank customer supplying pictures of our battery cage using in his farm

Advantage

1. Long time using
More than 15 years lifetime, best® galvanized surface treatment line is imported from Germany, uniform zinc coat is more resistant to corrosion
2. Easy to installation
We supply installation instruction and video, no need professional technicians
3. Excellent natural ventilation environment
More fresh air on all tier
4. Land & Space Saving
A type design, use up space too, raising capacity is three or four times than ground feeding

Package

The cage and frame are no package , some fittings are in plastic bags and carton box.
1. Less of full container: below 80 sets, first packed with plastic film then on the pallets
2. Full container: Nude packing

Type 20 ft container 40 ft high container
A-96 130 SETS 280 SETS
A-120 130 SETS 280 SETS
A-160 100 SETS 210 SETS
A-200 80 SETS 160 SETS


Afrcan warehouse delivery

Maintaining

1. After finish installation, clean the feeding trough

2. Connect water, to make sure the whole drinking system is well from row beginning to end
3. After 2 years using, move all birds, clean the cage mesh
4. Replace the nipple drinkers if they link water to protect brid feather, medicinal water will make feather fall off

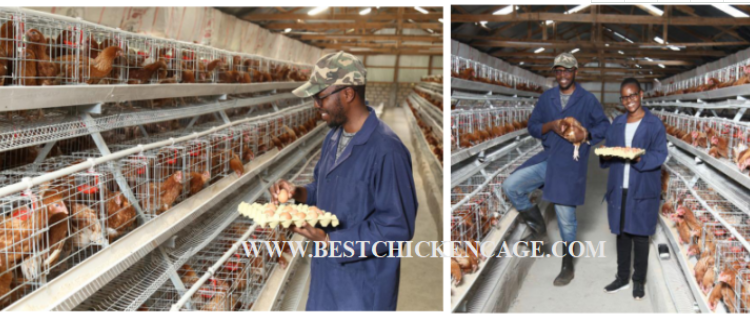

Thank customer supplying pictures of our chicken cage using in his farm
